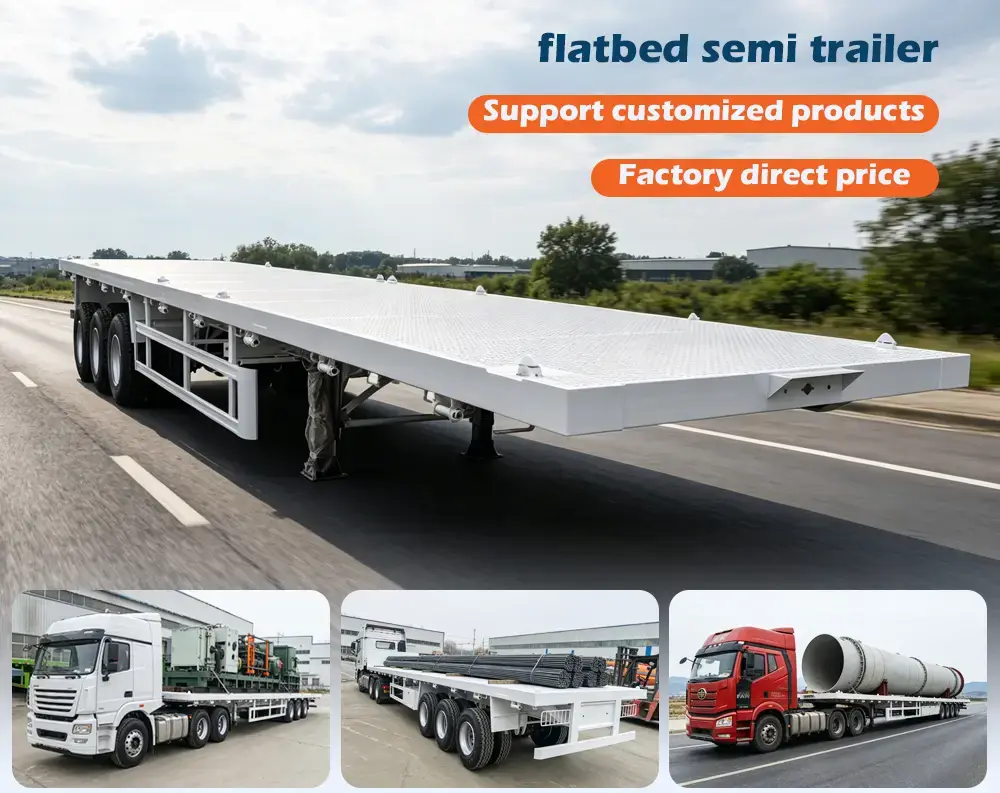

This 3 Axle Flatbed Container Semi-trailer features a container lock on its deck, making it suitable for transporting containers as well as steel equipment. Its lightweight design with three bearings provides ample load capacity and convenient loading and unloading. It can be detached from the cab and placed stably with outriggers, making it ideal for long-haul freight in port and factory areas. It is highly versatile and fuel-efficient due to its weight.
Key Selling Points of 3 Axle Container Semi-trailer
Superior Structural Durability: Fabricated from Q345B high-tensile steel with automatic submerged arc welding, guaranteeing long-term structural durability under extreme stress.
Optimized Payload Design: The reinforced main beam provides exceptional bending resistance, outperforming lightweight alternatives when handling fully loaded 40ft containers.
Premium Brand Component Specifications: Equipped with world-class FUWA axles and braking valves, which significantly reduces maintenance downtime and extends service life.
Flexible Container Locking Mechanism: Features 12 sets of heavy-duty twist locks, allowing highly secure and versatile switching between one 40ft container or two 20ft containers.
Anti-Corrosion Surface Treatment: Undergoes complete shot-blasting and premium polyurethane painting, providing excellent resistance against severe maritime weathering and rustic environments.
Send your demand, free design drawing & best quote for you!
Get a Free Quote Now
| Technical Parameter | Specification Details |
|---|
Product Model | 3 Axle Flatbed Container Semi-trailer (40ft Specification) |
Overall Dimensions | 12,500mm × 2,500mm × 1,550mm (Length × Width × Height) |
Tare Weight | Approx. 7,200 kg (Depending on final configuration) |
Nominal Payload | 45,000 kg – 60,000 kg (45-60 Tons Heavy-Duty Loading Capacity) |
Main Beam Material | Q345B High-tensile carbon steel |
Main Beam Dimensions | Height: 500mm; Upper plate: 14mm; Lower plate: 16mm; Web plate: 8mm |
Side Beam | 16mm channel steel or U-shaped steel |
Platform Floor | 3mm thickness checkered steel plate |
Axle Specification | 3 Axles × 13 Tons / 16 Tons (FUWA, BPW, or certified OEM optional) |
Suspension System | Heavy-duty mechanical leaf spring suspension (10-layer standard) / Air suspension optional |
Braking System | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber; Dual-line air brake |
Tire & Rim | 12.00R20 or 11.00R20 radial steel tires (12 pcs + 1 spare); 13 pcs steel rims |
Twist Locks | 12 sets of heavy-duty retractable ISO standard twist locks |
King Pin | 2.0 inch (50#) or 3.5 inch (90#) JOST interchangeable type |
Landing Gear | JOST D200T or Chinese brand 28-ton two-speed manual operation |
Electrical System | 24V system, 7-pin ISO socket; LED tail, side, and clearance lights (Waterproof) |
Surface Finish | Sandblasting clean-up, 1 coat of anti-corrosive primer, 2 coats of polyurethane topcoat |
Accessories | 1 standard toolbox, 2 spare tire carriers, heavy-duty side guards |
Port Logistics & Intermodal Transport : Engineered for fast-paced harbor terminals to shuttle heavy marine containers between cargo ships and railway hubs seamlessly.
Cross-Border Long-Haul Freight : Highly effective for trans-continental transportation across diverse road infrastructure, offering stable driving performance over thousands of miles.
Construction Site Supply Chain : Capable of entering rugged construction and mining zones to deliver bulk materials, steel structures, and prefabricated concrete blocks safely.
To ensure your products arrive perfectly and minimize shipping costs, we offer three professional international logistics solutions: roll-on/roll-off (Ro-Ro) shipping, bulk cargo shipping, and flat rack containers. We also provide professional waxing and painting before shipment to prevent seawater corrosion.
Ready to enhance your transport efficiency?
Get a Free Quote Now
With our excellent quality and reputation, we have obtained government-authorized ISO, CCC, CE, and B&V certifications. We have our own semi-trailer manufacturing plant, employing 200 people and operating as a professional manufacturer with annual sales of 50 million. Our products are popular in South Asia, the Middle East, Africa, and South America.
1.Does your company has your own factory? |
Yes,we have a factory ourself,our factory is very famous in shan dong,china. |
2.Do you support customization? |
Definitely!We can make the trailers based on your requirement. |
3.What's your minimum quantity? |
1 set. |
4.How to trust us? |
We provide customers with high-quality products and adhere to integrity. Welcome to visit our company or communicate through video call. |
5.What's your payment term? |
We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. |
6.How about the delivery time? How do you transport the semi trailers ? |
A: Within 15-35 days after we confirm you requirement. We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee. |
