Heavy Duty 3 Axle Fence Trailer is a professional heavy-load transport semi-trailer designed for long-distance and bulk cargo delivery, with high-strength structure, excellent durability, stable driving performance and strong adaptability, which effectively reduces transportation costs and improves loading efficiency for global B2B logistics and freight enterprises.
Want to know which model is right for you?
Click here to inquire
| Trailer Model | 3 Axles 40 Ton Side Wall Semi Trailer |
|---|
| Overall Dimension | 12500*2500*1600+600mm |
| (Lx W x H)(mm) |
| Loading Weight( KG) | 40000 |
| Axle Brand | 13TON Axle FUWA Brand |
| Axle Number | Three |
| Wheelbase(mm) | 7450+1310+1310 |
| Suspension system | Mechanical Leaf Spring Suspension |
| Leaf spring | 90(W)mm*13(Thick)mm*10 Layer |
| The material of Main beam | Q345B carbon steel,The height of the beam is 500 mm, upper plate is14mm,down plate is 16mm, middle plate is 8 mm. |
| Side beam | Q235 16# channel steel |
| Platform plate | 3mm Diamond plate |
| Tire Type and quantity | 12R22.5 12units |
| Rim | 9.00-22.5 |
| Traction Pin | 2” or 3.5” |
| Spare Wheel Bracket | 2 pieces |
| Tool Box | 1 Standard |
| Landing Gear | 28ton Chinese brand,double speeds |
| Brake system | Dual Line braking system |
| Brake air chamber | Six double chamber |
| Electrical system | 1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| One set 6-core standard Cable. |
| Painting | Color as customer’s requirement |
| Packing | Complete Chassis sand blasting to clean rust, 1 coat of anti-rust prime,2 coats of final paint |

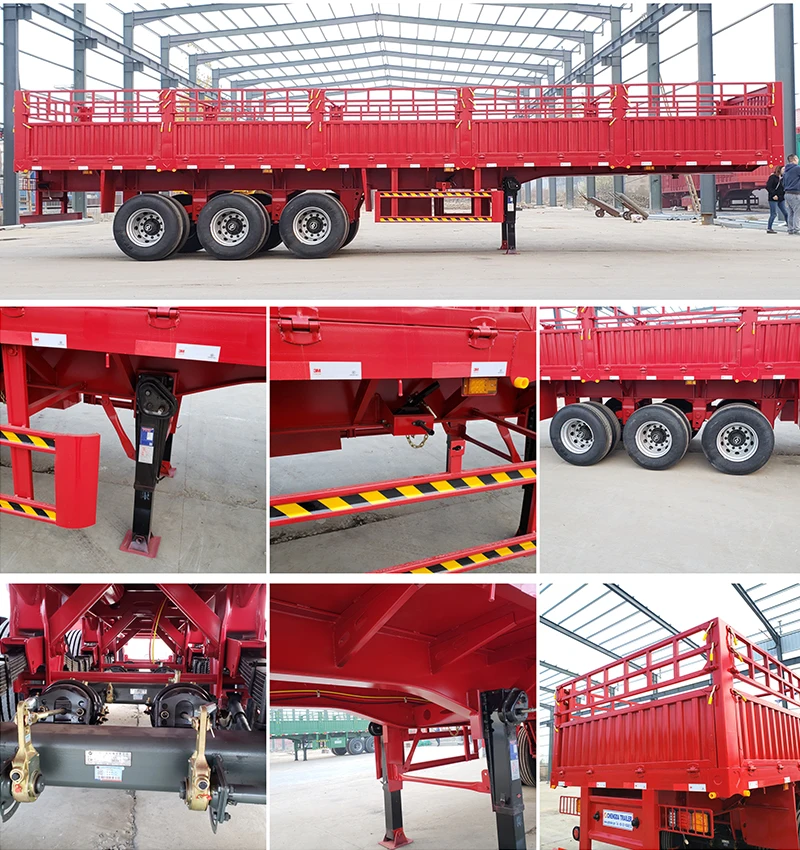

DETAIL SHOT
1.Adopt high-strength manganese steel main beam, enhance structural durability and load-bearing capacity.
2.Optimized 3-axle layout ensures even stress distribution and stable driving on complex roads.
3.Full welded frame + anti-corrosion painting, extend service life in harsh working environments.
4.Standard fence design supports flexible loading and unloading for various bulk and packaged cargo.
Ready to enhance your transport efficiency?
Get a Free Quote Now

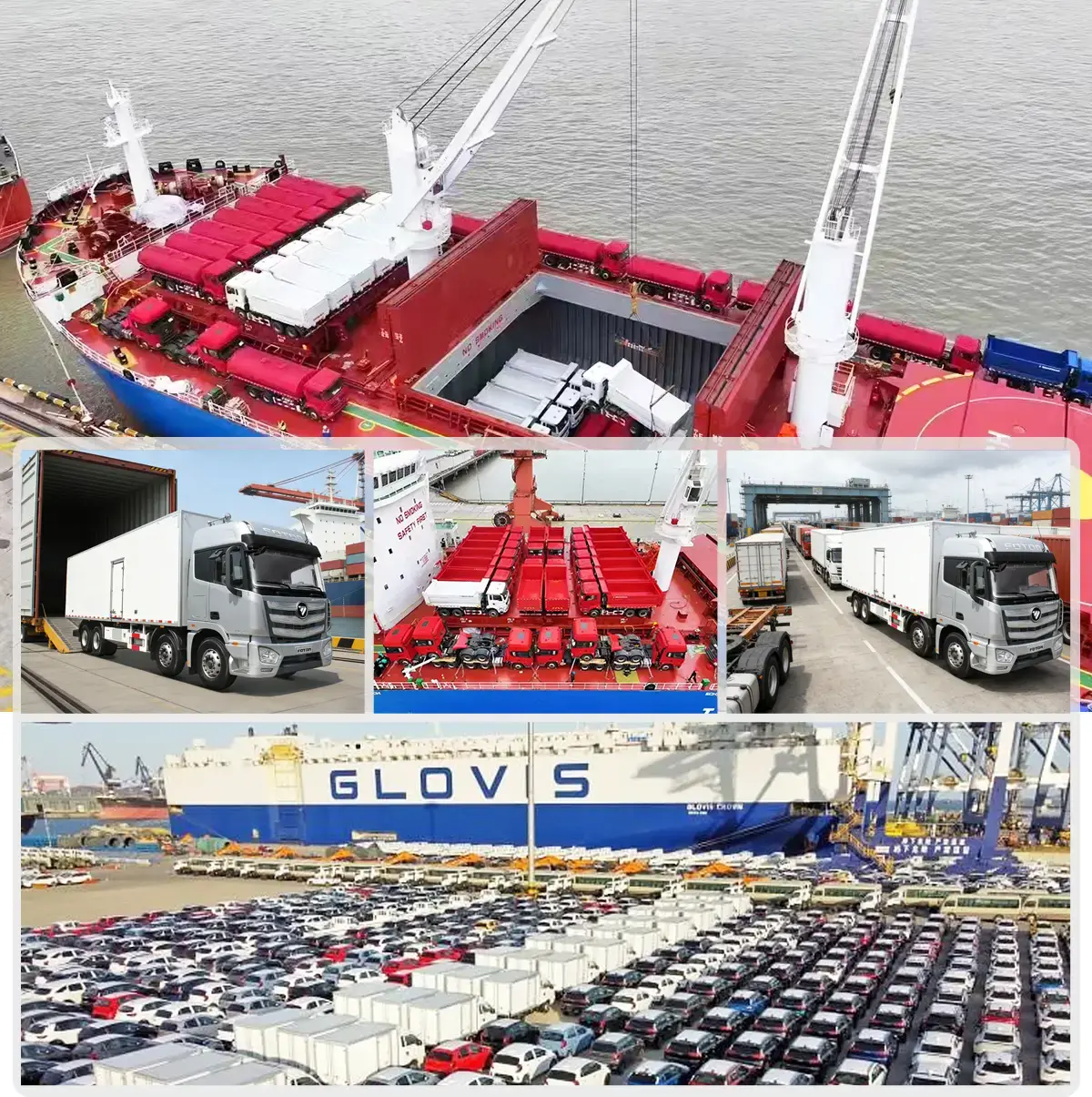

Packaging and Transportation
The Heavy Duty 3 Axle Fence Trailer adopts professional export packaging: nude packing with anti-rust wax and plastic film protection, main parts fixed with steel wire and wooden support, to avoid collision and scratch during long-distance ocean and land transportation, ensuring product integrity and durability.
FAQ
1.Q: Are you a producer or buying and selling employer?
A: We're direct manufacturer, we've our own manufacturing unit in shandong province.
2. Q: How will you make certain the first-rate of the goods?
A:Our uncooked material and oem parts including axle, suspension, tyre, are bought centralized by chengda organization,every node might be inspected strictly. furthermore, superior device instead of handiest employee is been implemented at some point of the complete generating system to ensure the welding fine.
3. Q: How do you transport the semi trailers?
A: We delivery the semi trailers by bulk,field or ro to ro. our manufacturing unit possesses lengthy-time period cooperation with deliver business enterprise that may offer you lowest shipping charge.
4. Q: Are you able to satisfy my special requirement?
A: Honestly! we are direct producer and we've strong generating capability and r&d capability!
5. Q: Are we able to visit your manufacturing unit?
A: Yes, warmest welcome to visit our manufacturing unit. we are able to pick you up in jinan airport or jinan educate station.
