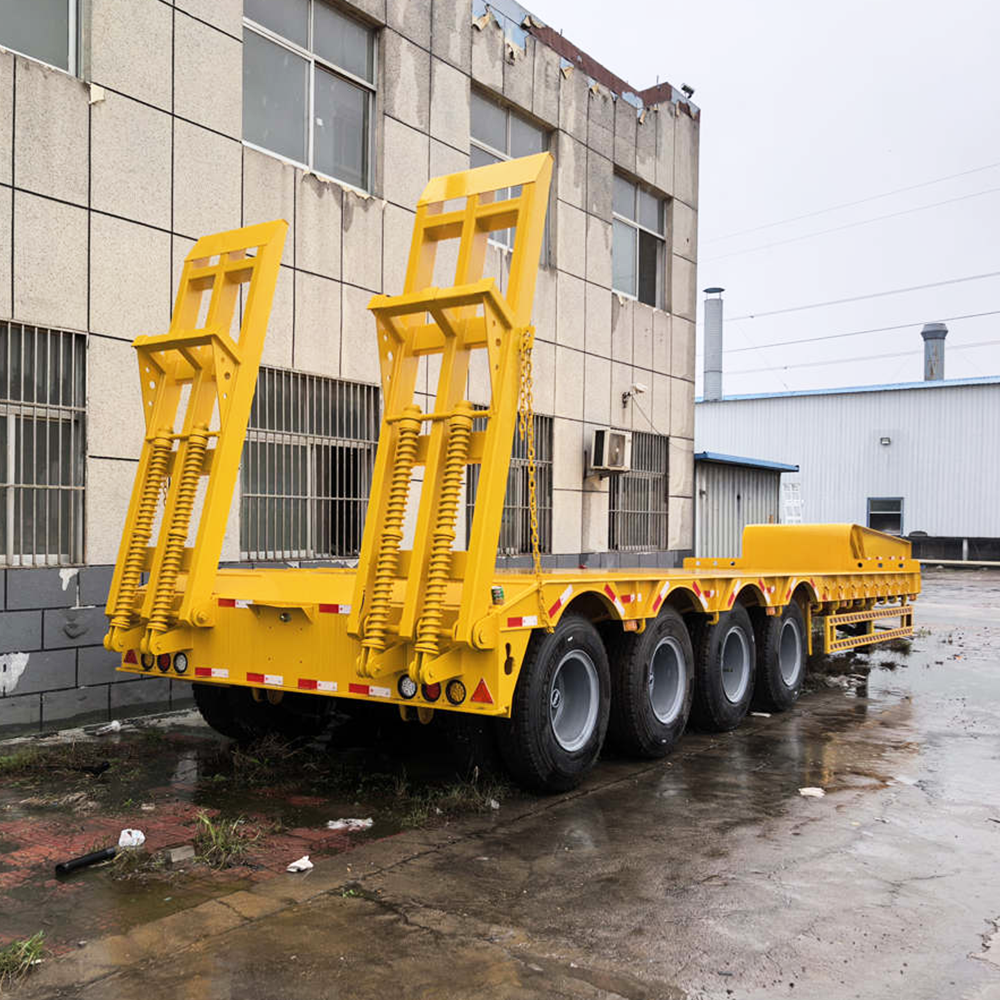

Heavy Duty Machinery Lowbed Trailer
Heavy Duty Lowbed Semi-Trailer for Machinery Transport

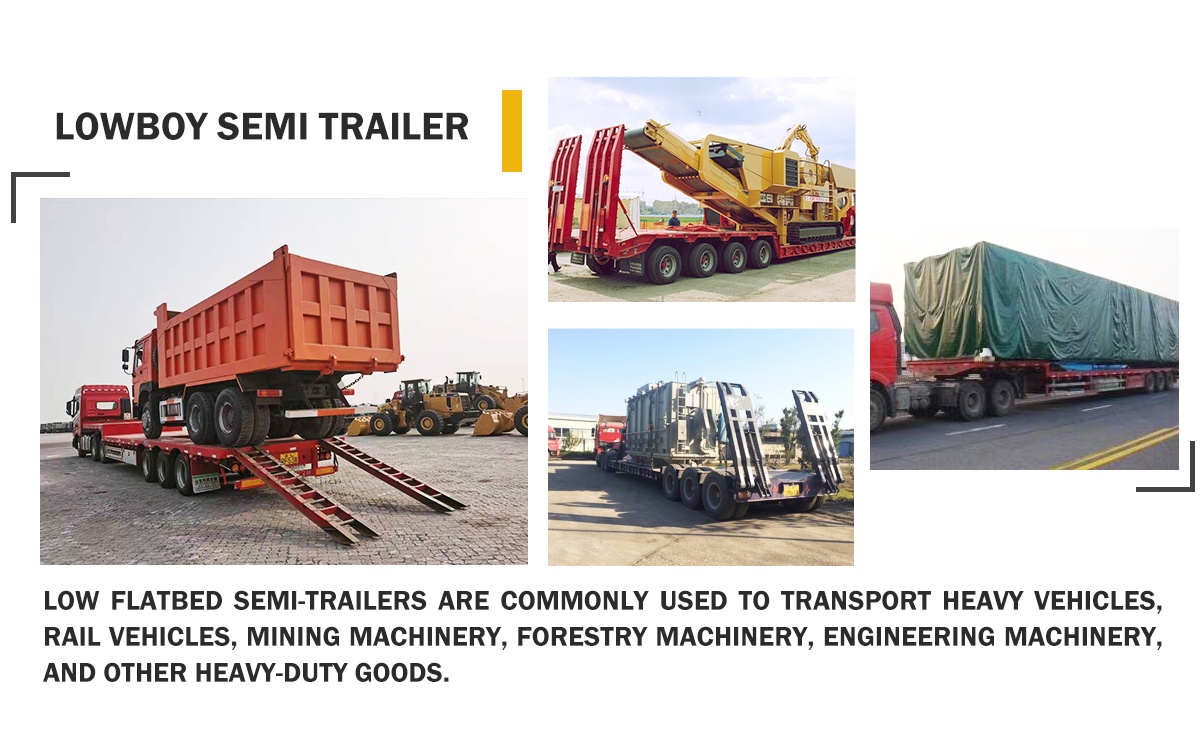

Our lowbed trailers are specifically engineered to carry heavy construction machinery and oversized industrial equipment. With a low center of gravity and ultra-strong structure, they provide maximum stability and safety during long-distance transportation.
Technical Specifications:
Loading Capacity: 40 Tons to 100 Tons options.
Axles: 2/3/4 Axles (FUWA or BPW brand available).
Main Beam: Heavy-duty and extra durability designed I-beam, using high-tensile Q345B steel.

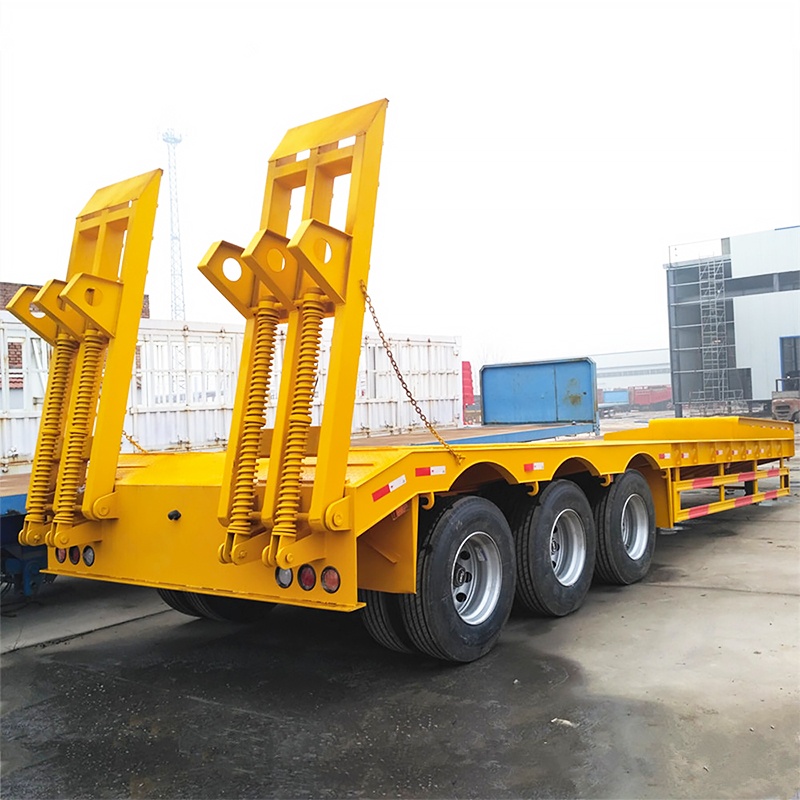

Ramps: Manual or hydraulic heavy-duty ramps for easy loading of excavators.
Suspension: Mechanical leaf spring suspension or air suspension.
Floor: 4mm-5mm thickness checkered plate.
Key Advantages:
Low Loading Height: Ensures stability and allows passage under low bridges/tunnels.

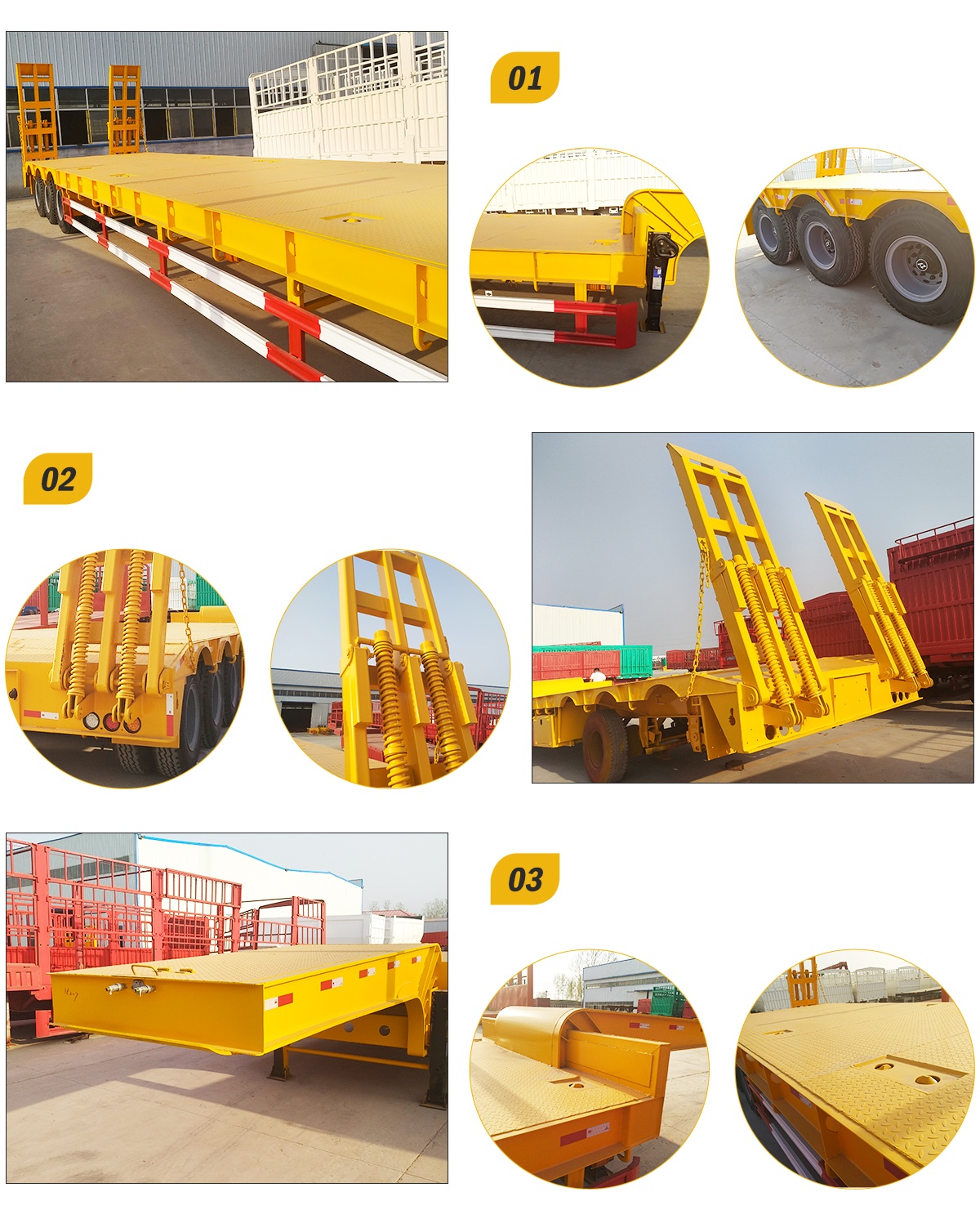

Reinforced Structure: Extra strengthening on the gooseneck and loading platform to prevent deforming.
Customizable: We offer various lengths, widths, and loading capacities to meet your specific project requirements.
