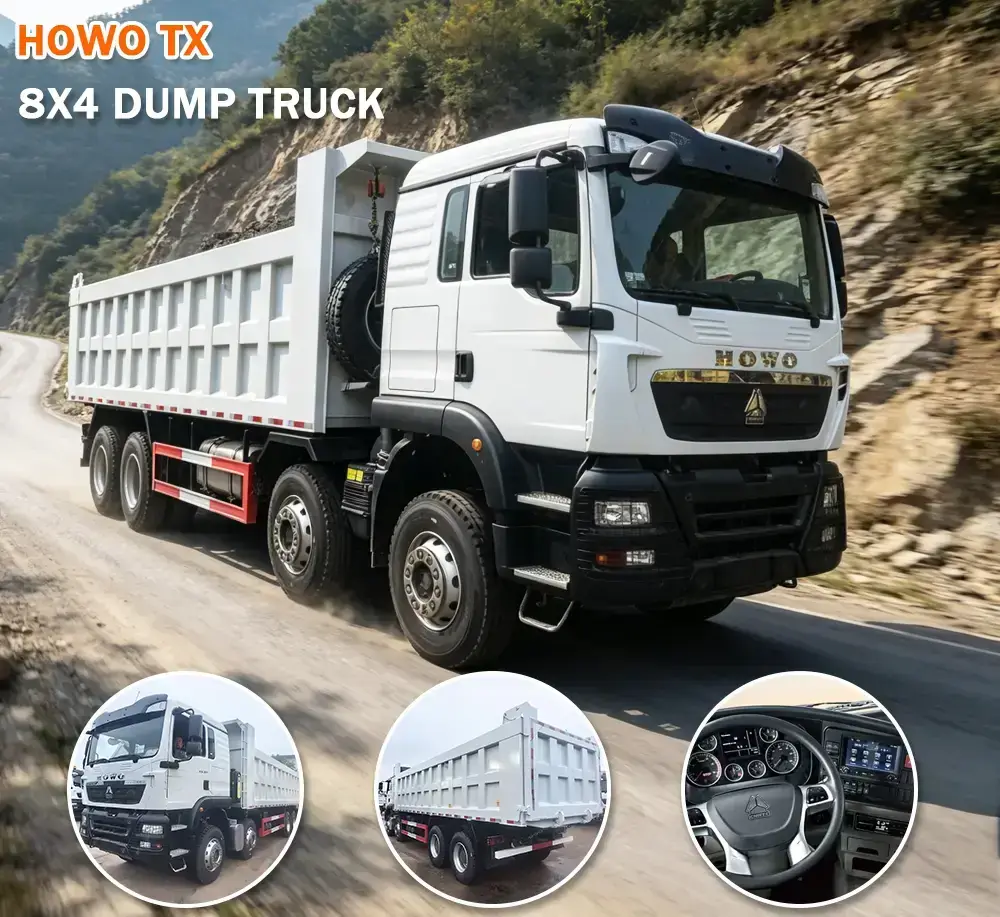

This brand new Sinotruk TX 371 dump truck is designed specifically for heavy-duty engineering and harsh mining environments. Equipped with a powerful 371 horsepower engine and Weichai's core technology, and boasting a robust chassis with superior durability, excellent fuel economy, and a high return on investment through direct factory pricing, it becomes your most reliable "money-making tool" for infrastructure construction and efficient logistics transportation!
| Technical Parameter | Detailed Specifications |
|---|
Chassis Model | ZZ3257V3847B1 / Heavy-duty reinforced structure |
Drive Type | 6x4 (Left Hand Drive / Right Hand Drive optional) |
Engine Model | WD615.47 / WP10.371E22 (Weichai / Sinotruk Technology) |
Max Output | 371 HP (273 kW) @ 2200 rpm / Max Torque: 1500 Nm |
Displacement | 9.726 L (Diesel, 6-cylinder in-line with water cooling) |
Emission Standard | Euro II / Euro III / Euro IV customized |
Transmission | HW19710 (10 forward speeds & 2 reverse, manual) |
Front Axle | VGD95 / HF9 (9,500 kg loading capacity, drum brake) |
Rear Axles | MCP16 / HC16 (2 x 16,000 kg heavy cast steel reduction axle) |
Axle Ratio | 5.73 / 4.8 optional |
Steering | ZF8118 / Bosch hydraulic steering with power assistance |
Tires | 12.00R20 / 13R22.5 (Radial steel tire, 10+1 spare tire) |
Cabin | TX luxury cabin, with one sleeper berth, A/C, air suspension seat |
Cargo Box Dimensions | 5600 × 2300 × 1500 mm (Standard volumetric size) |
Cargo Box Thickness | High-tensile steel Q345B, Bottom: 8mm, Side: 6mm |
Tipping System | HYVA front lifting system / Famous brand middle lifting |
Gross Vehicle Weight (GVW) | 25,000 kg (Official legal limit) |
Payload Capacity | 30,000 - 45,000 kg (Actual mining/construction heavy-duty capacity) |
Fuel Tank Capacity | 300L / 400L Aluminum alloy fuel tank with locking cap |
Ready to enhance your transport efficiency?
Get a Free Quote Now

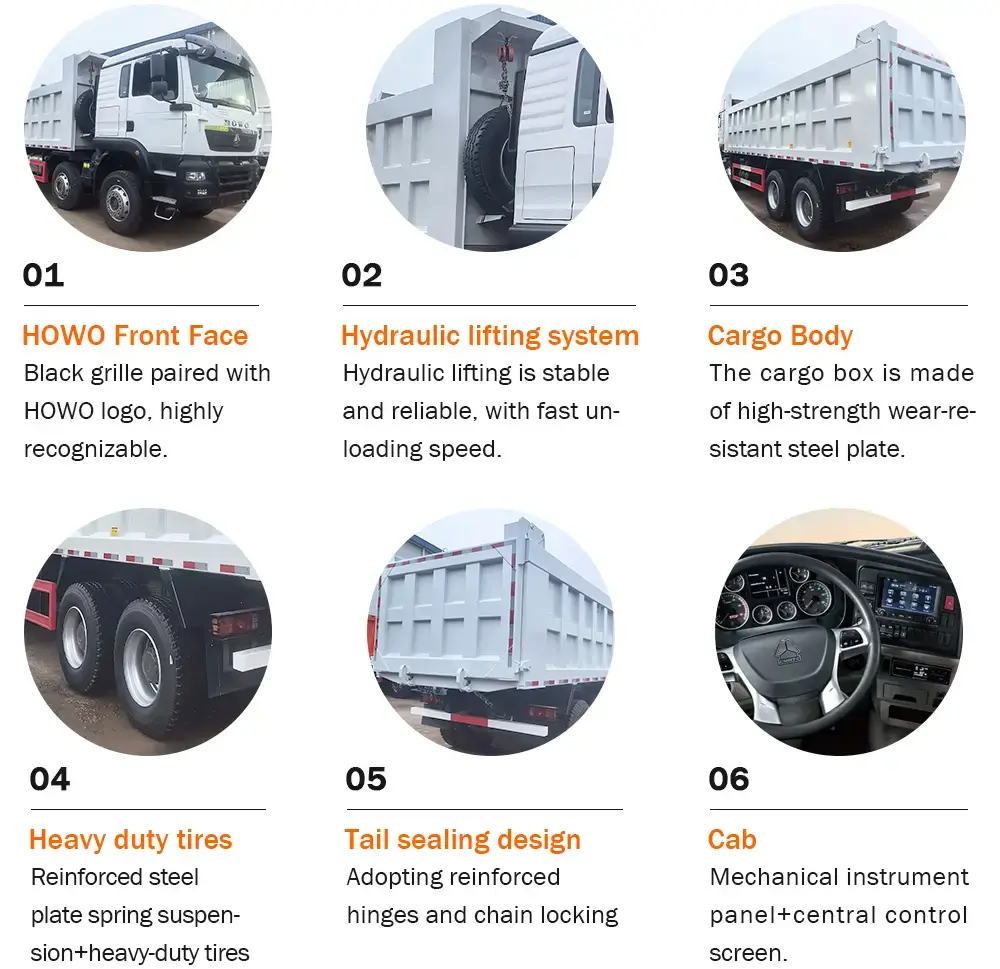

High Durability Chassis ：Reinforced steel suspension and high-tensile frame structure ensure stability under maximum payload specifications.
Powerful 371HP Engine ：Equipped with a fuel-efficient Engine offering high torque at low speeds to master steep slopes in complex application fields.
Optimized Cargo Box Design ：Wear-resistant material with high-thickness plating prevents deformation during heavy rock impacts.
Ergonomic TX Cabin ：Provides superior driver comfort, reduced noise, and advanced safety features for long-shift operations.
Exceptional ROI & Low Maintenance ：Global availability of genuine spare parts ensures minimal downtime and optimized operational economy.

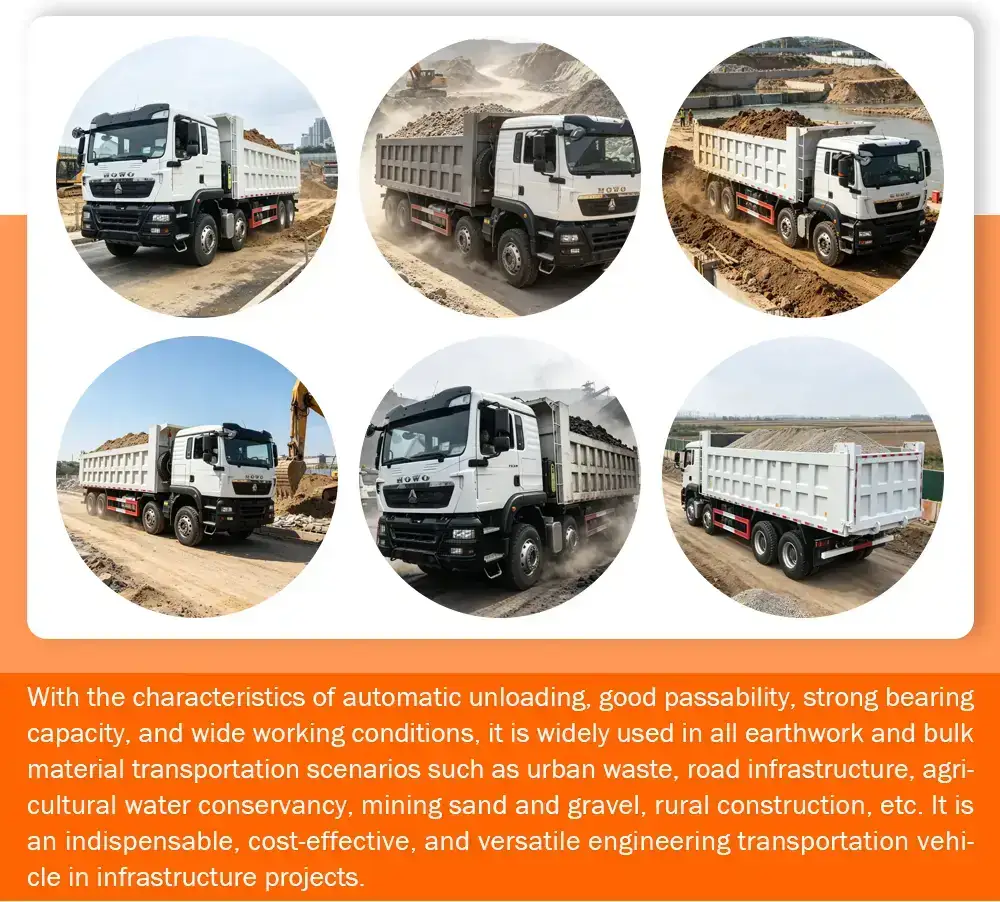

Heavy-Duty Mining & Quarrying ：Perfectly engineered to haul raw minerals, coal, and heavy stones across rough, unpaved terrains where component durability is critical.
Infrastructure Construction ：Ideal for urban development, highway construction, and massive earthmoving logistics requiring non-stop cycling under rigorous load specifications.
To protect the exterior paint and critical drivetrain electronics of your Howo TX tractor unit, we offer professional packaging and shipping solutions. Each vehicle undergoes a comprehensive technical diagnostic inspection and multi-layer anti-corrosion wax polishing to protect the steel body from moisture during sea transport. We utilize reliable roll-on/roll-off (RORO) or specialized bulk carrier shipping methods to ensure the vehicles arrive at their international destinations intact.
Do you need a customized transportation solution using this Howo dump truck?
Get a Free Quote Now
We welcome customers from around the world to visit our factory and inspect our heavy-duty vehicles in person. These face-to-face exchanges allow our partners to directly verify our production capabilities, quality standards, and customized solutions, while building long-term, mutually trusting partnerships based on transparent and reliable communication.
