Sinotruk 4x2 Light-duty Dump Truck

Sinotruk 4x2 Light-duty Dump Truck

Sinotruk 4x2 Light-duty Dump Truck

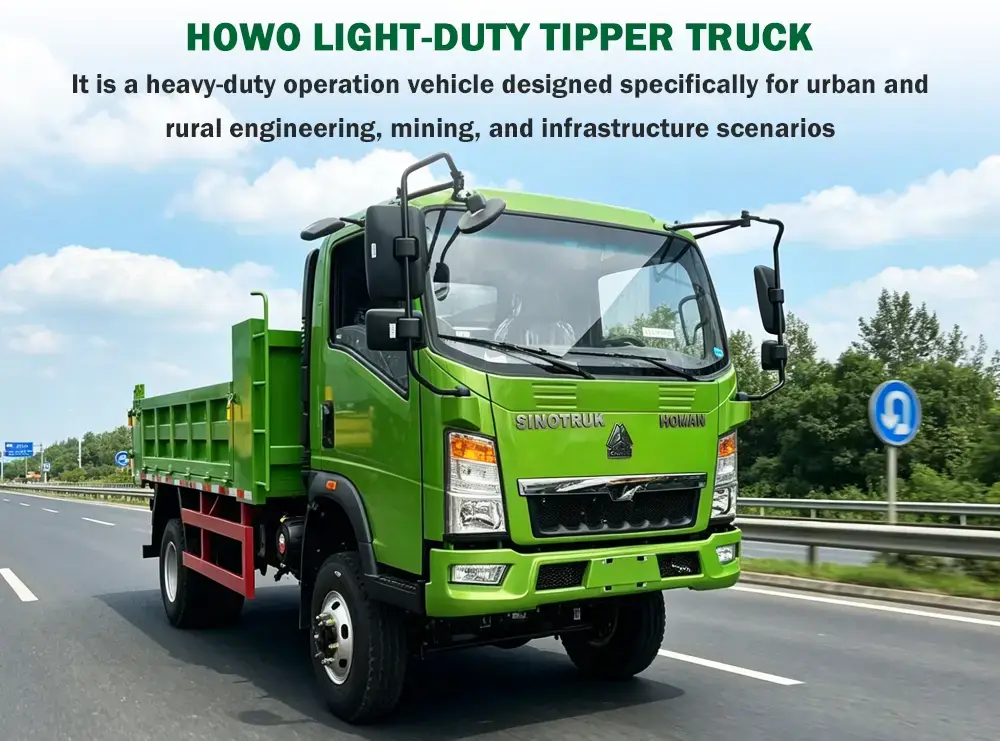

Sinotruk 4x2 light-duty dump truck provides exceptional maneuverability and higher fuel efficiency than heavy tippers, making it perfect for urban construction and narrow roads.

Use : Transport of sand, gravel, municipal waste, and small-scale construction materials

Configuration : Weichai Engine, WLY 5-speed transmission, reinforced steel cargo box, hydraulic lifting system

Condition : 100% Brand New

Product Details

The Sinotruk 4x2 light-duty dump truck boosts urban and engineering logistics efficiency. Powered by a 110/115hp Yunnei high-torque engine and a Wanliyang 5-speed transmission, it cuts fuel consumption by 10%–15% versus comparable models. It features a double-layer reinforced chassis, a Q345B high-strength cargo box (4mm bottom, 3mm sides) and a 3–5 ton rated load. With a 25% smaller turning radius than standard 3-axle dump trucks, it easily maneuvers in 2.5-meter narrow lanes.

Sinotruk 4x2 Light-duty Dump Truck

Product Parameters


ParameterSpecification (Industrial Grade)

Model & Type

Sinotruk 4x2 Light-duty Dump Truck (Mini Tipper)

Loading Capacity

3000kg-5000kg(3-5tons)

Engine Model

YN27CRE1 (Yunnei) / WP2.3Q110E50 (Weichai) Euro 2/3/5 /

Engine Power

110hp/115hp@ 3000rpm

Transmission

WLY 5-speed Manual with Overdrive

Chassis Frame

200*65*(5+4)mm Double-layer Reinforced Frame

Front/Rear Axle

2.0 Ton Front Axle / 3.5-5.0 Ton Heavy Duty Rear Axle

Cargo Box Thickness

Bottom:4.0mm, Side: 3.0mm High-Tensile Steel

Lifting System

Dual-cylinder middle hydraulic tipping system

Tires

7.00R16 All-steel radial tires (6+1 spare tire)

Brake System

Dual circuit compressed air brake + Exhaust brake

Electrical & Battery

24V System, 2*12V/100Ah maintenance-free batteries




Ready to enhance your transport efficiency?

Get a Free Quote Now

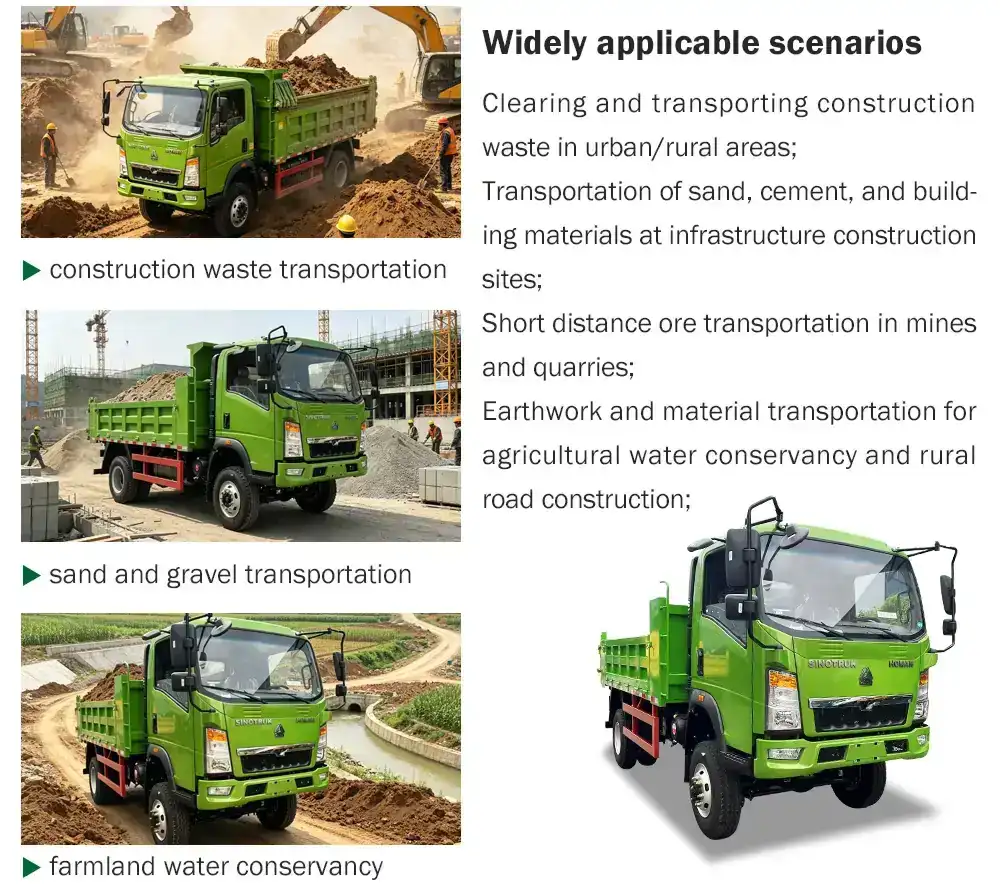

Product Application

Urban Construction & Renovation:This Sinotruk 4x2 light-duty dump truck is highly effective for hauling debris, bricks, and sand into restricted downtown building zones where large 6x4 or 8x4 trucks cannot enter.

Landscaping & Agricultural Logistics:Perfect for transporting topsoil, fertilizer, saplings, and harvested crops across farms, nurseries, and municipal parks due to its low ground pressure and excellent maneuverability......

application

transportation

To protect the exterior paint and critical drivetrain electronic components of your Howo dump trucks, we offer professional packaging and shipping solutions. Each vehicle undergoes a comprehensive technical diagnostic inspection and multi-layer anti-corrosion wax polishing to protect the steel body from moisture during sea transport. We utilize reliable roll-on/roll-off (RORO) or specialized bulk carrier shipping methods to ensure the vehicles arrive at their international destinations intact.

transportation




Ready to enhance your transport efficiency?

Get a Free Quote Now

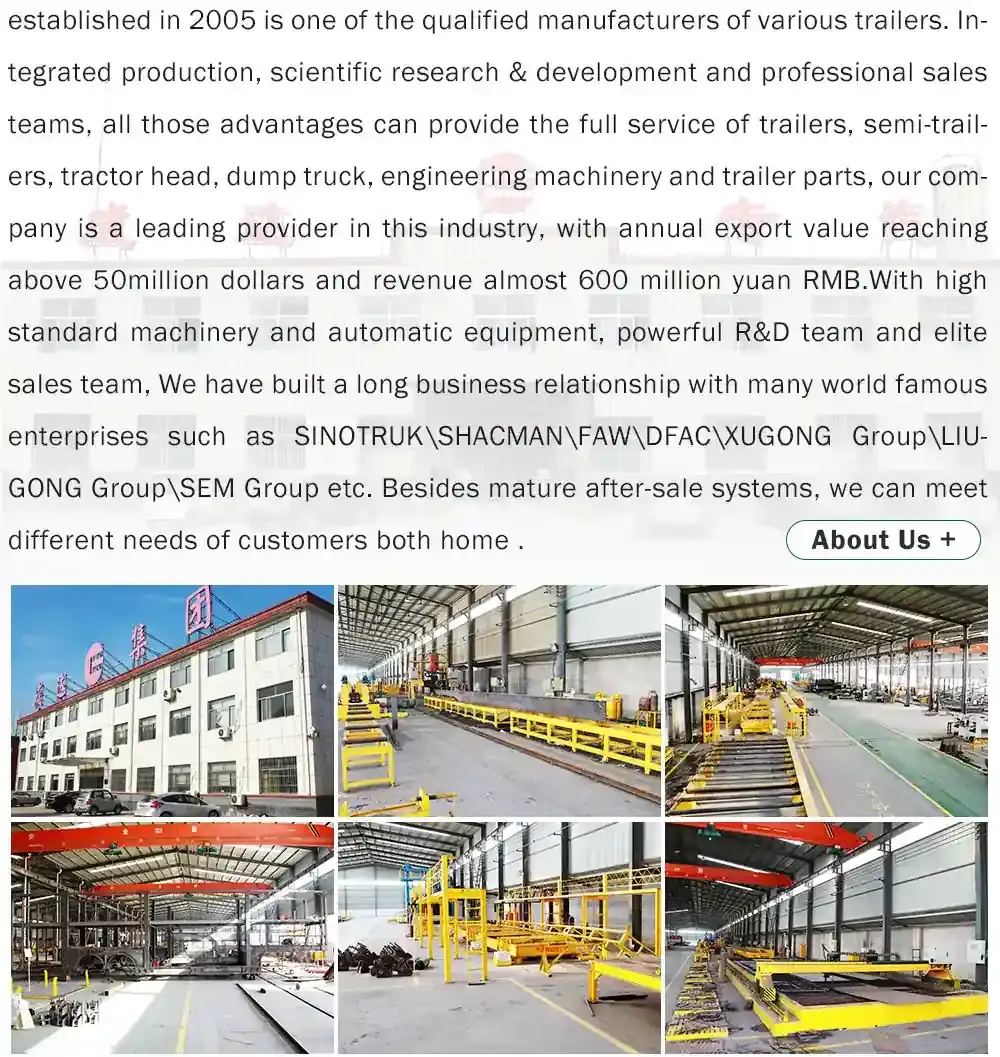

Company Profile

company profile

certificate

With proven quality and a strong brand image, we have obtained ISO9001, CCC, ECE, and BV certifications. As a manufacturer with its own factory and R&D capabilities, we currently have 200 employees, annual sales of 60 million, and our products are widely recognized in Southeast Asia, the Middle East, Africa, South America, and Central America.

certificate

We welcome customers from around the world to visit our factory and inspect our heavy-duty vehicles in person. These face-to-face exchanges allow our partners to directly verify our production capabilities, quality standards, and customized solutions, while building long-term, mutually trusting partnerships based on transparent and reliable communication.

customer visits

FAQ1.who are we?

We are based in Shandong, China, start from 2016,sell to Africa(49.40%),Southeast Asia(29.10%),South America(4.60%),Mid East(4.00%),South Asia(2.90%),Domestic Market(1.60%),Eastern Asia(1.40%),Oceania(1.00%),North America(1.00%),Southern Europe(1.00%),Northern Europe(1.00%),Central America(1.00%),Western Europe(1.00%),Eastern Europe(1.00%). There are total about 150 people in our office.

2.How can we guarantee quality?

Always a pre-production sample before mass production; Always final Inspection before shipment;

3.What can you buy from us?

Flatbed Trailer,Low Bed Trailer,Skeleton Trailer,Fuel Tanker Trailer,Bulk Cement Trailer,Dump Trailer,Fence Trailer

Dump Truck,Tractor Truck,Concrete Mixer Truck,Fuel Truck,Water Truck,Mechanical Equipment And Semi-Trailer Parts For Trucks, Etc.

4.Why should you buy from us not from other suppliers?

We company is located in the superior environment of Jinan,Shandong province. We company has advanced production processing equipment to ensure the quality of the products!And we company's products are exported to overseas countries at present with a good prospects.

5.What services can we provide?

Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;

Accepted Payment Currency:USD,EUR,CNY;

Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;


Please fill in the form with details so we can send you a quotation correctly
