1. Superior Durability & Lifespan : The mixing drum is forged from specialized Q345 or T700 high-strength wear-resistant steel, significantly reducing wear and extending the vehicle's service life.
2. Top-Tier Hydraulic System : Equipped with world-renowned brands of hydraulic pumps, motors, and speed reducers, ensuring smooth drum rotation and preventing concrete segregation.
3. Heavy-Duty Dongfeng Chassis : Built on the premium Dongfeng T-LIFT engineering chassis, offering strong load-bearing capacity, excellent gradeability, and stability on rough terrain.
4. Rapid Charging & Discharging Optimized blade design increases the charging speed to $\ge 3\text{ m}^3/\text{min}$ and discharging speed to $\ge 2\text{ m}^3/\text{min}$ with low residual rate.
5. Intelligent Water Supply & Cleaning : Features a large-capacity pressurized water tank to ensure easy, thorough cleaning of the drum after every delivery, preventing concrete hardening.
Ready to enhance your transport efficiency?
Get a Free Quote Now
| Parameter Item | Technical Specifications |
|---|
| Chassis Brand | Dongfeng |
| Drive Wheel / Axles | $6 \times 4$ or $8 \times 4$ |
| Mixing Drum Volume | $8\text{ m}^3$ / $10\text{ m}^3$ / $12\text{ m}^3$ |
| Drum Material | $5\text{mm} - 6\text{mm}$ High-strength alloy steel |
| Engine Power | $340\text{ HP}$ / $375\text{ HP}$ / $380\text{ HP}$ |
| Dimension | Approx. $9,300 \times 2,500 \times 3,990\text{ mm}$ |
| Gross Vehicle Weight | Approx. $25,000\text{ kg}$ |
| Drum Rotation Speed | $0 - 14\text{ rpm}$ |
| Discharge Residual Rate | $< 0.5\%$ |

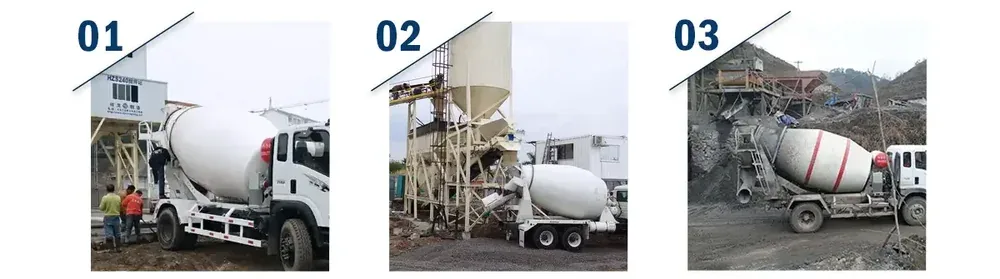

1. Urban Infrastructure : Ideal for transporting commercial ready-mix concrete for high-rise buildings, municipal roads, and urban bridge construction.
2. Remote Engineering & Highways : Its robust durability allows it to navigate long distances and rugged roads for highway, railway, and dam projects efficiently.
3. Commercial Concrete Plants : Serves as a reliable, heavy-duty transit vehicle for concrete batching plants to maintain continuous supply chains.
To ensure your products arrive perfectly and minimize shipping costs, we offer three professional international logistics solutions: roll-on/roll-off (Ro-Ro) shipping, bulk cargo shipping, and flat rack containers. We also provide professional waxing and painting before shipment to prevent seawater corrosion.
Ready to enhance your transport efficiency?
Get a Free Quote Now
1. The company offers a one-year warranty. During this period, if any parts are damaged under normal use, we will provide replacement parts free of charge.
2. For operational issues, technical configurations, etc., we will quickly provide practical solutions to our clients. We are currently investing in the construction of multiple diplomatic facilities to better serve our major clients.
3. We offer high-quality products at competitive prices, and customer-designed products are available for selection.
4. We guarantee fast delivery and prompt response. Your satisfaction is our responsibility.
