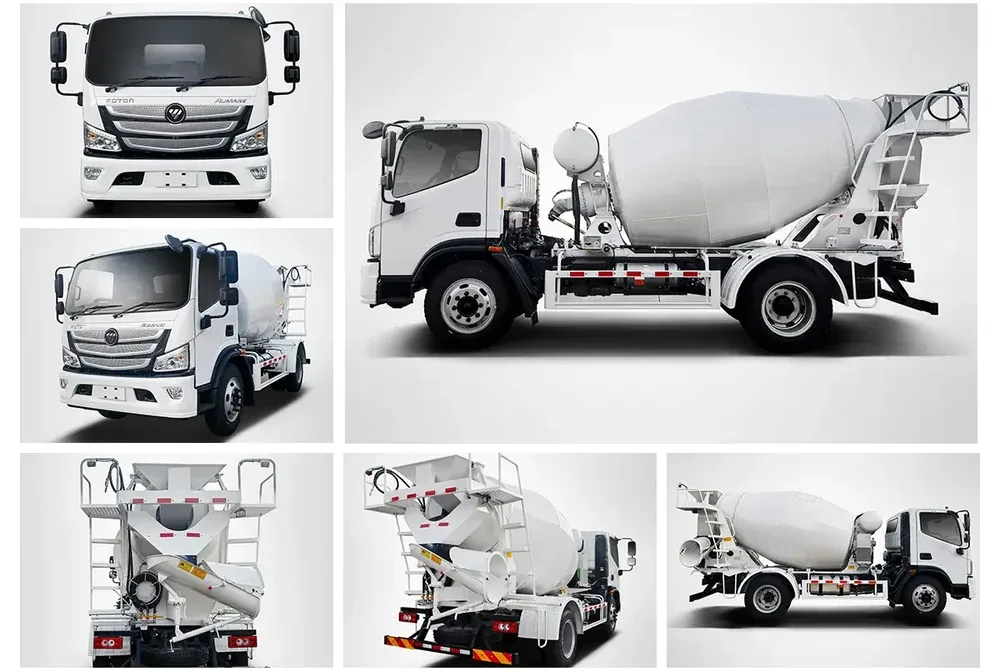

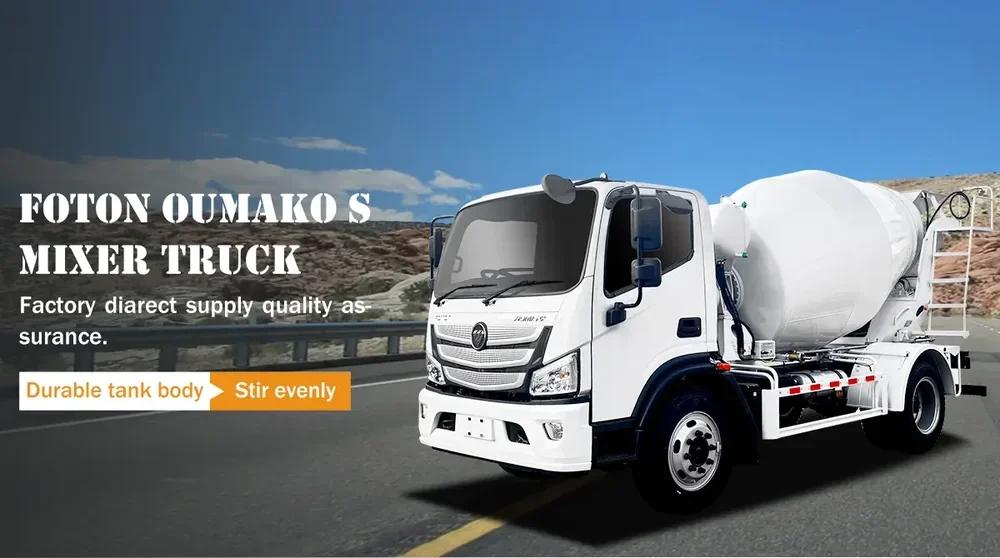

The Foton Aumark 4x2 mixer truck is specially designed for narrow urban roads and rural construction. Equipped with a Cummins engine and a high-wear-resistant alloy steel mixing drum, its compact size and maneuverability perfectly solve the problem of large vehicles being unable to enter the site, making it a high-ROI tool for efficient transportation in small and medium-sized projects.
High Maneuverability & Compact Design: The customized 4x2 chassis dimensions allow the vehicle to easily navigate low-clearance areas and tight urban construction sites where 6x4 or 8x4 trucks cannot enter.
Superior Durability of Mixing Drum: Built with high-tensile, wear-resistant alloy steel, the mixing drum prevents concrete segregation and features an extended service life under harsh working conditions.
Powerful & Efficient Cummins Engine: Powered by a genuine Cummins diesel engine, it provides high torque at low speeds, significantly reducing fuel consumption while ensuring continuous mixing performance.
Advanced Hydraulic System: Utilizes top-tier international brand hydraulic pumps and motors, ensuring smooth rotation of the drum, precise discharging, and low maintenance costs.
Ergonomic & Safe Cabin: The Foton Aumark S-line cabin offers a wide field of vision, comfortable air-suspended seats, and advanced braking systems to maximize operator safety.
Ready to enhance your transport efficiency?
Get a Free Quote Now
| Technical Parameter | Specification Details |
|---|
| Chassis Brand & Model | Foton Aumark S-Series 4x2 |
| Driving Type | 4x2, Left Hand Drive / Right Hand Drive |
| Wheelbase | $3300\text{ mm} - 3800\text{ mm}$ |
| Engine Type | Cummins ISF Diesel Engine, 4-Cylinder |
| Engine Power | $130\text{ HP} - 170\text{ HP}$ |
| Emission Standard | Euro 3 / Euro 4 / Euro 5 |
| Transmission | Manual, 5 or 6 Forward Gears |
| Tire Specification | 7.50R16 / 8.25R16 Radial Tires, 6+1 Pcs |
| Mixer Drum Capacity | $3\text{ m}^3 - 5\text{ m}^3$ |
| Drum Material | Q345 / 16Mn Wear-Resistant Alloy Steel |
| Feeding & Discharging Speed | Feeding $\ge 3\text{ m}^3/\text{min}$, Discharging $\ge 2\text{ m}^3/\text{min} |
| Discharge Residual Rate | $< 0.5\%$ |
| Hydraulic Pump & Motor | Rexroth / Eaton / Ark Brand |
| Water Tank Capacity | $300\text{ L} - 400\text{ L}$ Pneumatic Water Supply
|
Urban Infrastructure & Real Estate : Highly effective for inner-city road repairs, community housing projects, and commercial building foundations where heavy trucks face transit restrictions.
Rural Reconstruction & Township Roads : Ideal for the construction of narrow country roads, bridge repairments, and agricultural infrastructure due to its lightweight specification and flexible turn radius.
Precast Concrete Plants : Perfect for short-distance, small-batch transit mixing requirements within or near precast concrete factories, optimizing operational cost efficiency.
Ready to enhance your transport efficiency?
Get a Free Quote Now

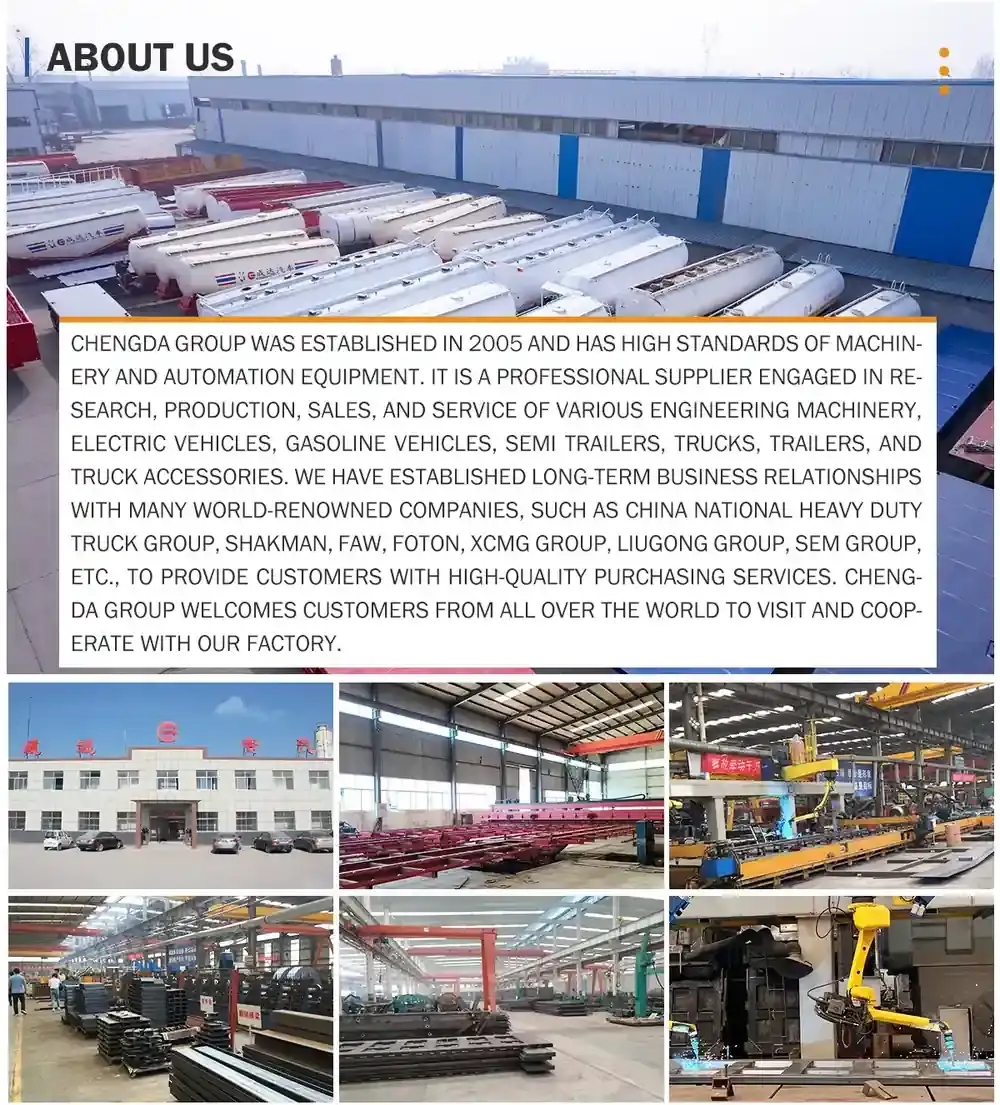

With proven quality and a strong brand image, we have obtained ISO9001, CCC, ECE, and BV certifications. As a manufacturer with its own factory and R&D capabilities, we currently have 200 employees, annual sales of 60 million, and our products are widely recognized in Southeast Asia, the Middle East, Africa, South America, and Central America.
We welcome customers from around the world to visit our factory and inspect our heavy-duty vehicles in person. These face-to-face exchanges allow our partners to directly verify our production capabilities, quality standards, and customized solutions, while building long-term, mutually trusting partnerships based on transparent and reliable communication.
