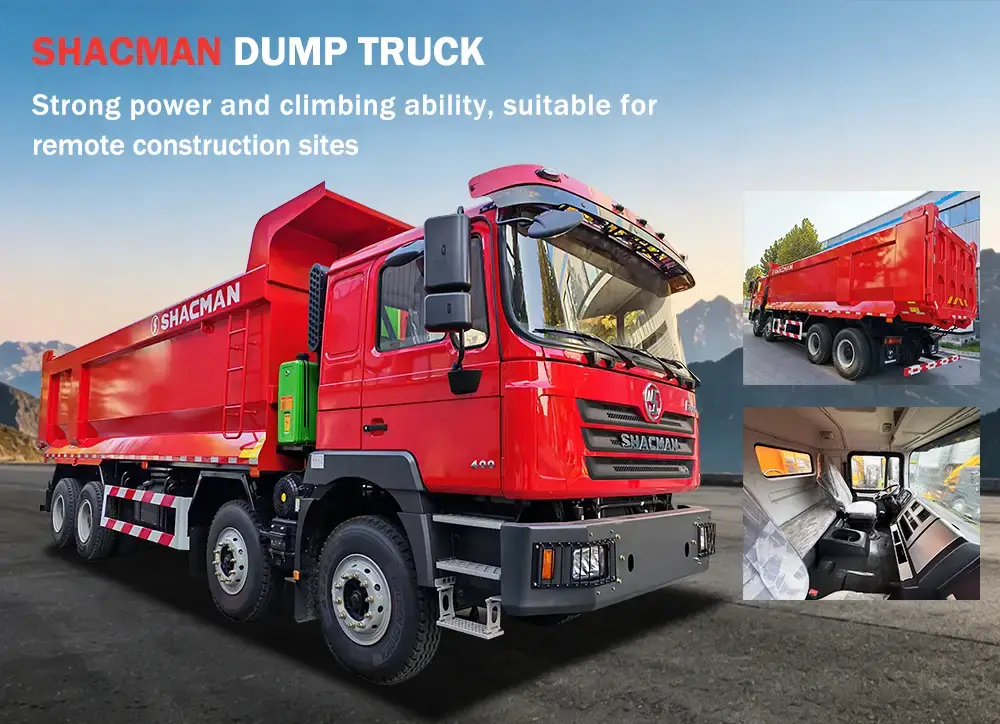

The Shacman 8×4 U-shaped Bucket Dump Truck features a lightweight, curved cargo box with no blind spots for clean unloading. Its light weight and stable center of gravity make it less prone to tipping over. Combined with a heavy-duty reinforced four-axle chassis and high-torque power, it is suitable for short-distance engineering transportation of fine, sticky materials such as slag, sand, gravel, and coal.
| Specification | Details |
|---|
Drive Model | 8x4 (12 Wheels) |
Overall Dimensions | Approx. 10,300 × 2,550 × 3,450 mm |
Cargo Body Dimensions | 7,600 × 2,300 × 1,500 mm (Customizable) |
Bucket Type & Material | High-strength wear-resistant steel U-shaped bucket (HARDOX/Q345B alternative) |
|
|
Bucket Thickness | Bottom: 8 mm, Side: 6 mm (Heavy-duty option: 10mm/8mm) |
|
|
Hydraulic Lifting System | HYVA front lifting system / HYVA |
Engine Model | WEICHAI WP10.380E22 / WP12.400E20 (Euro II / III / V optional) |
|
|
Max Torque | 1,600 - 1,920 N·m @ 1200-1500 rpm |
Transmission | FAST 10JSD180 + QH50 PTO (10 Forward & 2 Reverse, Manual) |
|
|
Front Axle | MAN 9.5 Tons × 2 (Non-driving steering axle) |
|
|
Rear Axle | MAN 16 Tons × 2 Double reduction driving axle, Ratio: 5.26 / 5.92 |
|
|
Suspension System | Reinforced multi-leaf springs (Front 10/10, Rear 12 plates) |
|
|
Chassis Frame | Double-deck frame (850×300 (8+7) mm) for extreme overloading |
|
|
Tires | 12.00R20 / 13.00R20 / 315/80R22.5 (Radial steel tires, 12+1 spare) |
|
|
Fuel Tank Capacity | 400L Aluminum alloy fuel tank |
Gross Vehicle Weight (GVW) | 31,000 kg (Design capacity up to 50,000 kg) |
|
|
Payload Capacity | 35 - 45 Tons (Depending on material density) |
|
|
Cabin Type | X3000 / F3000 Flat roof cabin with one sleeper, A/C, hydraulic seat |
|
|
Want to know which model is right for you?
Click here to inquire

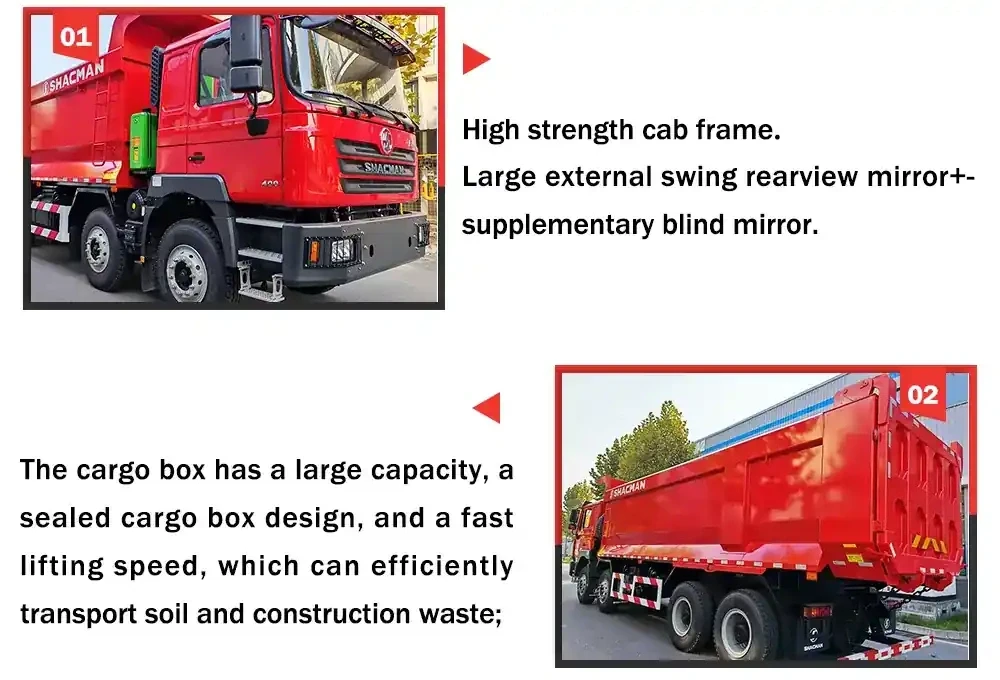

Advanced U-Shaped Bucket Design : The curved structure prevents material sticking, ensures cleaner and faster unloading, and lowers the center of gravity for safer driving.
Unmatched Durability : Built with high-strength wear-resistant steel, the cargo body resists severe impacts from rocks and heavy ores.
Golden Power Assembly : Powered by a high-torque Weichai engine paired with a professional Fast transmission, delivering exceptional gradeability.

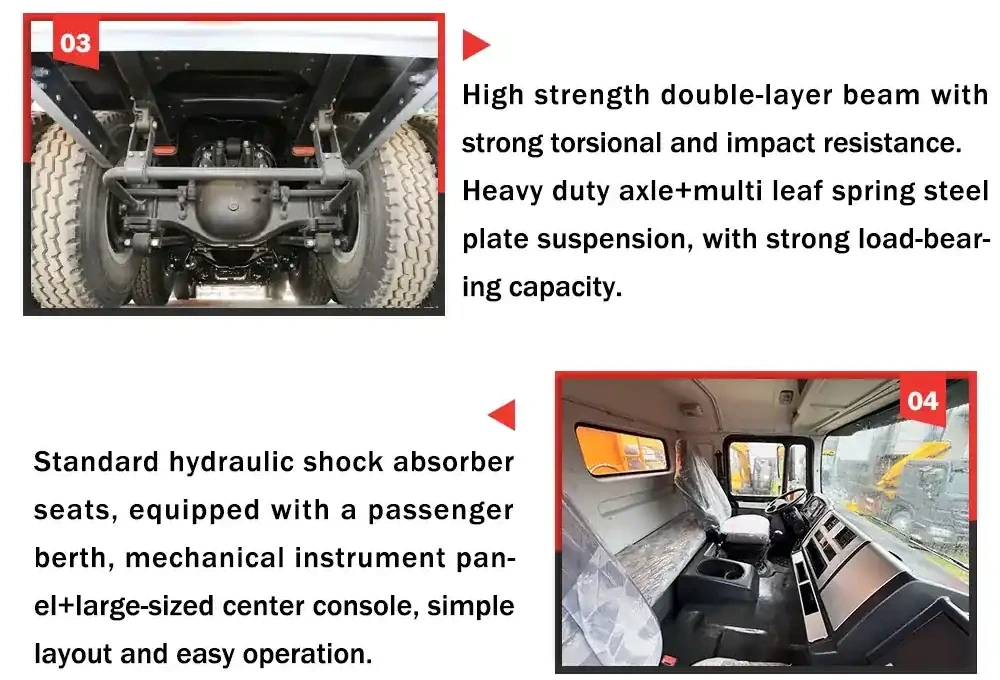

Heavy-Duty Payload Capacity : Reinforced suspension and high-strength 8x4 chassis frames allow stable performance under extreme overloads.
Enhanced Driver Comfort : The ergonomic cabin reduces driver fatigue during long-distance hauling, increasing daily operational efficiency.

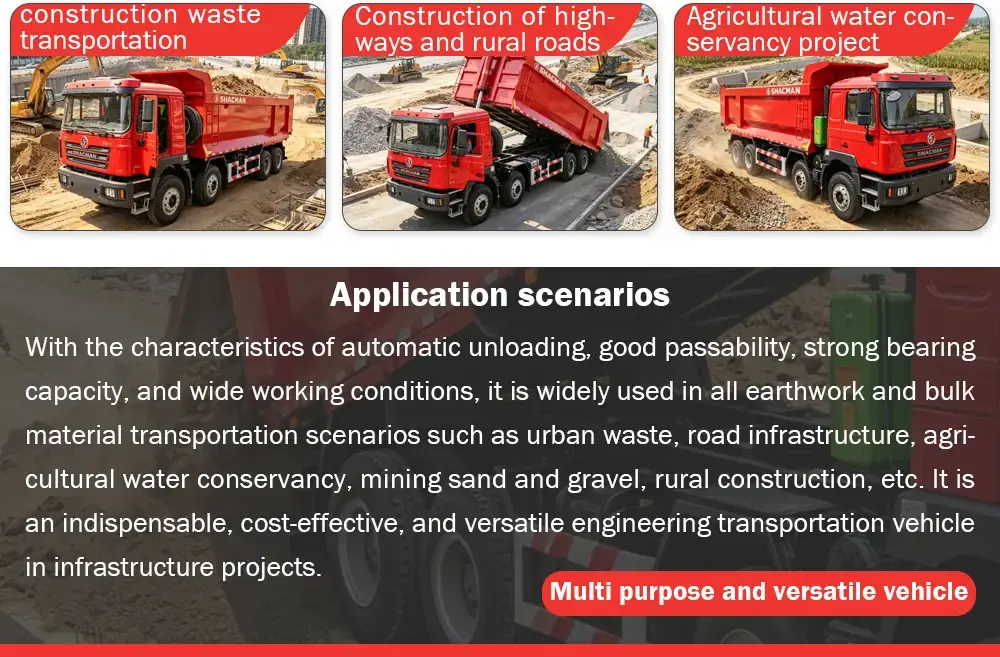

This Shacman 8x4 dump truck is engineered to operate efficiently in the harshest environments. Its primary fields of application include:
Open-pit Mining : Transporting coal, iron ore, and overburden across rugged terrains.
Large Infrastructure Projects : Hauling earth, gravel, and concrete aggregates for highway and dam construction.
Quarry Operations : Carrying heavy blasted rocks from the excavation site to the crushers.

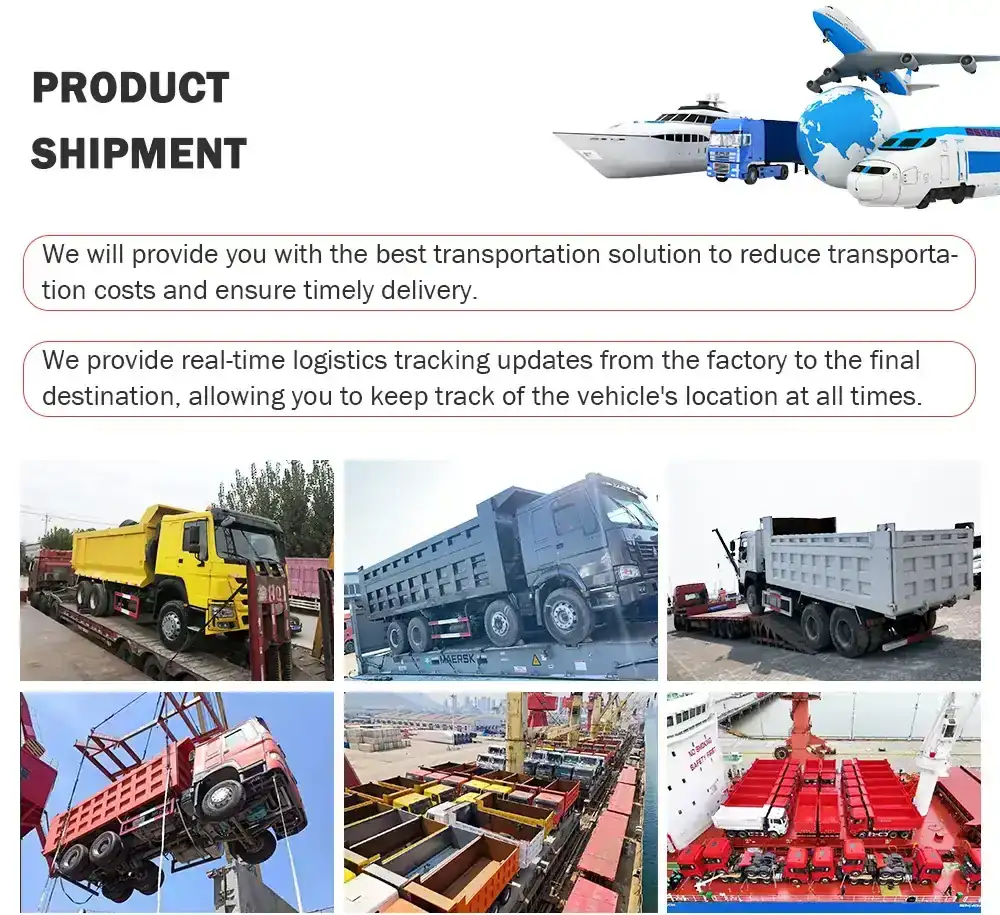

To protect the exterior paint and critical drivetrain electronics of your Shacman 8×4 U-shaped Bucket Dump Truck, we offer professional packaging and shipping solutions. Each vehicle undergoes a comprehensive technical diagnostic inspection and multi-layer anti-corrosion wax polishing to protect the steel body from moisture during sea transport. We utilize reliable roll-on/roll-off (RORO) or specialized bulk carrier shipping methods to ensure the vehicles arrive at their international destinations intact.
Ready to enhance your transport efficiency?
Get a Free Quote Now

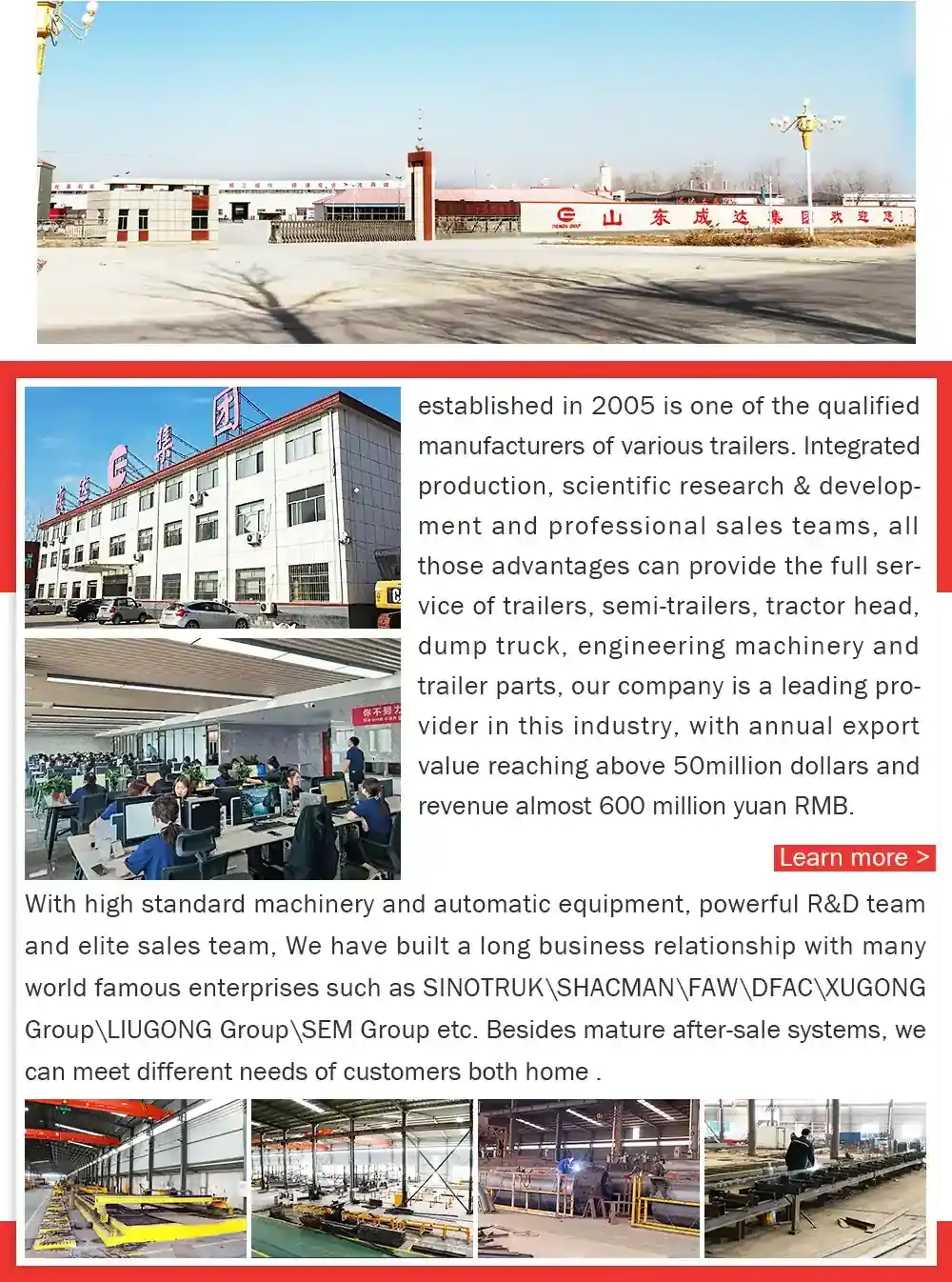

We welcome customers from around the world to visit our factory and inspect our heavy-duty vehicles in person. These face-to-face exchanges allow our partners to directly verify our production capabilities, quality standards, and customized solutions, while building long-term, mutually trusting partnerships based on transparent and reliable communication.
