| Item | Parameter |
|---|

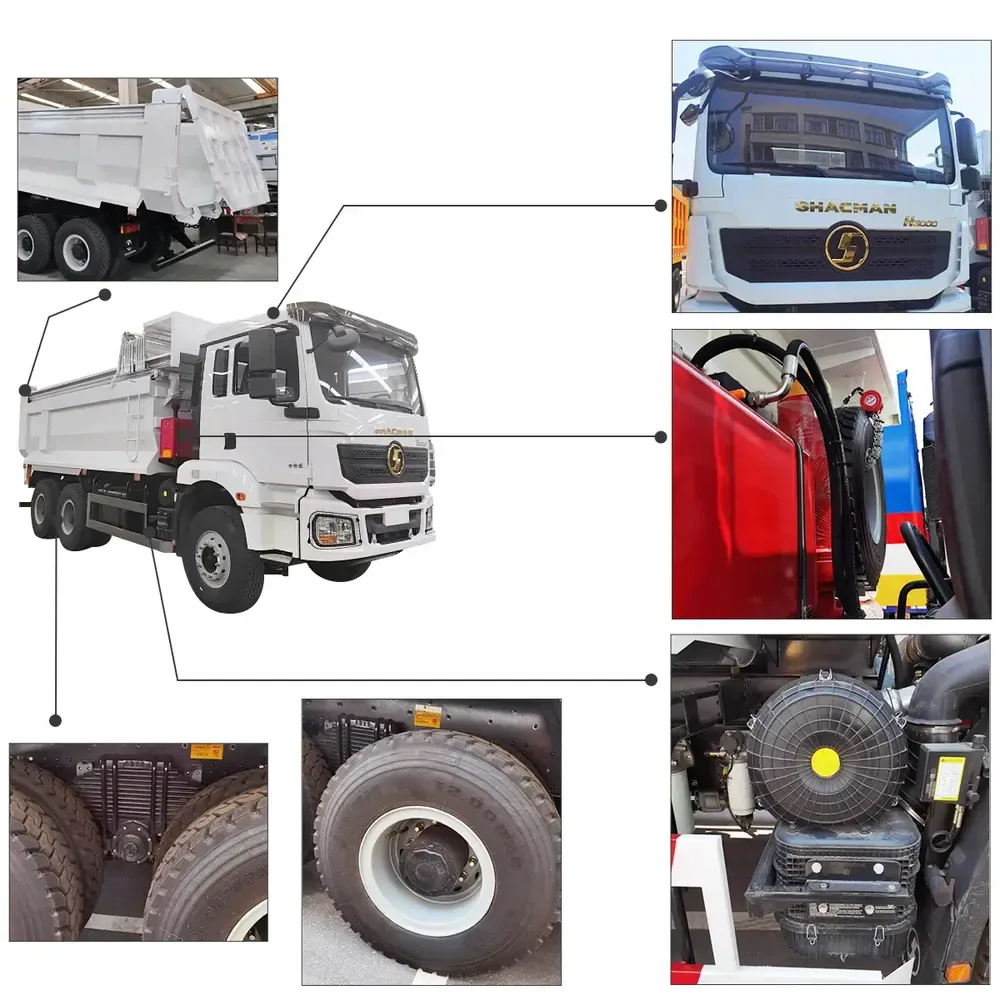

| Product Model | SHACMAN H3000 6×4 Heavy Dump Truck |
| Drive Mode | 6×4 Rear Axle Drive |
| Emission Standard | Euro 2 / Euro 3 (Optional) |
| Engine Model | Weichai WP10H / WP12 Diesel Engine |
| Rated Power | 375 HP / 430 HP |
| Gearbox | Fast 10-speed Manual Transmission |
| Wheelbase | 3800mm / 4000mm |
| Overall Dimension | 8600×2550×3450 mm |
| Curb Weight | 16800 KG |
| Gross Vehicle Weight | 31000 KG |
| Rated Loading Capacity | 14200 KG |
| Cargo Box Dimension | 5600×2350×1500 mm |
| Cargo Box Material | High-strength Manganese Steel |
| Lifting System | Front-mounted Multi-stage Hydraulic Cylinder |
| Suspension System | Reinforced Leaf Spring Suspension |
| Brake System | Full Air Brake + ABS Anti-lock System |
| Tire Specification | 12.00R20 Heavy-duty Tire |
| Fuel Tank Capacity | 400L Large Fuel Tank |
| Max Speed | 85 km/h |
| Steering System | Hydraulic Power Steering |
Want to know which model is right for you?
Click to inquire
1. Authentic Weichai Power, Strong & Stable Output：The SHACMAN H3000 Heavy Dump Truck adopts original Weichai diesel engine, matched with Fast transmission.
2. Lightweight Reinforced Body & Higher Load Rate：Adopting optimized lightweight high-strength steel structure, the truck reduces self-weight while improving overall rigidity. It realizes larger effective loading capacity, effectively increasing single-transport profit for fleets.
3. Superior Durability & Anti-Corrosion Performance：Thickened manganese steel cargo box features strong impact resistance and wear resistance. Optimized welding process and reinforced stress points resist long-term impact of stones, gravel and earth, extending service life.
4. Fuel-Saving Design & Low Operating Cost：Matched with intelligent fuel supply system and hydrodynamic transmission technology. Compared with traditional heavy dump trucks, it lowers overall fuel consumption significantly, greatly reducing long-term fleet operation costs.
5. Humanized Cab & High Safety Performance：Equipped with shock-absorbing cab, air-conditioning and comfortable seat. It features sensitive braking system and stable chassis, ensuring driving safety and reducing driver fatigue during long-hour engineering operations.
This SHACMAN H3000 Heavy Dump Truck is widely used in mine mining, quarry stone transportation, highway municipal construction, large-scale earthwork filling, construction waste cleaning and infrastructure engineering. It is the preferred heavy-duty transportation equipment for harsh engineering environments.
To ensure your products arrive perfectly and minimize shipping costs, we offer three professional international logistics solutions: roll-on/roll-off (Ro-Ro) shipping, bulk cargo shipping, and flat rack containers. We also provide professional waxing and painting before shipment to prevent seawater corrosion.
