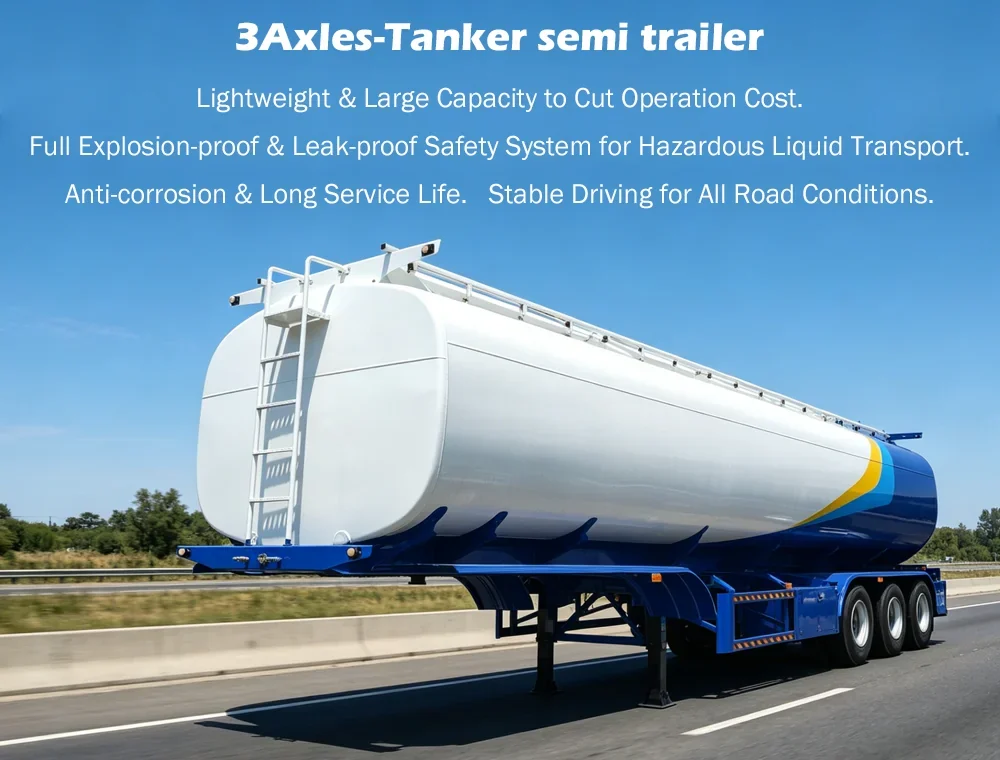

3 Axle Fuel Tank Semi Trailer for Heavy Liquid Transport This 3 axle fuel tank semi trailer is engineered for heavy liquid transport, delivering high payload efficiency, superior structural safety and a long service life. It carries 30,000 to 45,000 litres in a high-tensile Q345B carbon steel or aluminum tank, available with 1 to 6 compartments and customizable overall dimensions. Three 13-ton or 16-ton FUWA or BPW axles and a reinforced suspension keep the load stable on long-distance haulage, while explosion-proof manholes, an API bottom discharge valve and optical anti-spill sensors cover the safety side. |
Interested in this trailer? Contact us for pricing and current availability.
Need a different capacity, compartment layout or axle brand? Tell us your requirements.
| Specification Item | Technical Details |
|---|---|
| General Information | |
| Model | 3 Axle Fuel Tank Semi Trailer |
| Overall Dimension | Approx. 11,500 x 2,500 x 3,700 mm (customizable) |
| Payload Capacity | 30,000 - 45,000 Liters (30 - 45 m3) |
| Tank Body Material | High Tensile Carbon Steel Q345B (5 mm body, 6 mm dish ends) or Aluminum |
| Compartment | 1 - 6 compartments (customized) |
| Chassis & Running Gear | |
| Axle Brand & Quantity | 3 axles x 13 ton / 16 ton (FUWA, BPW or equivalent) |
| Suspension System | Heavy-duty mechanical leaf spring / optional air suspension |
| Tire Specifications | 12.00R20 / 315/80R22.5 (12 pcs + 1 spare tire) |
| King Pin | 2.0 inch (50 mm) or 3.5 inch (90 mm) JOST brand |
| Landing Gear | JOST / FUWA 28 ton two-speed manual operation |
| Tank Equipment & Safety | |
| Discharge Valve | 3 or 4 inch API bottom discharge valve with aluminum protective box |
| Braking System | Dual line pneumatic brake system with WABCO valves, optional ABS |
* Specifications are for reference only and are confirmed against the actual trailer configuration and your destination country's import and registration rules.
Want a detailed quotation with shipping to your nearest port?

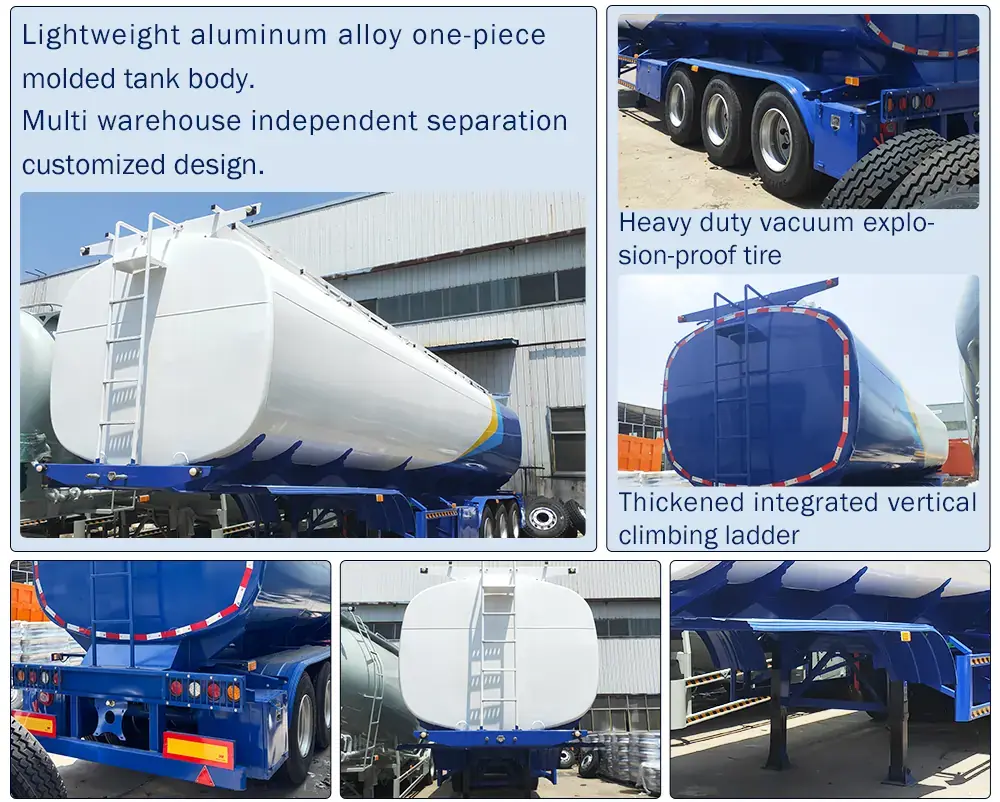

High-Strength Steel & Durable Build Built with high-tensile Q345B steel or premium aluminum alloy, giving exceptional impact resistance, corrosion protection and long-term durability on heavy liquid duty. | Advanced Anti-Leakage Safety Fitted with European-standard explosion-proof manholes, bottom emergency shut-off valves and optical anti-spill sensors for safe fuel transport. |
Anti-Wave Inner Baffles High-strength internal anti-surge baffles reduce liquid sloshing in transit, improving driving stability and vehicle control on rough roads. | Heavy-Duty Axles & Suspension World-renowned FUWA or BPW 13-ton and 16-ton axles with a reinforced suspension are specified to handle high payloads over long-distance haulage. |
Have questions about this trailer? We are here to help.

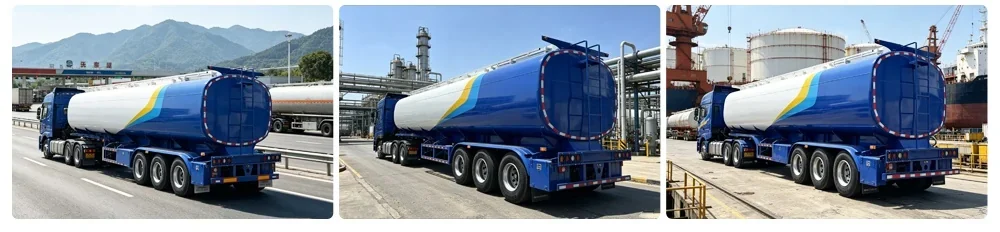

Fuel Station Supply Fleets Designed for reliable bulk transport of gasoline and diesel from petroleum depots directly to retail gas stations. | Mining & Heavy Equipment Sites Provides efficient on-site mobile refueling for excavators, heavy trucks and power generators at off-road industrial sites. |
Cross-Border Liquid Logistics Built with high structural integrity to handle tough climate conditions and long-haul intermodal fuel transportation routes. | Industrial Petrochemical Supply Can be customized with specialized chemical coatings for transporting industrial liquid fuels and light crude oil safely. |

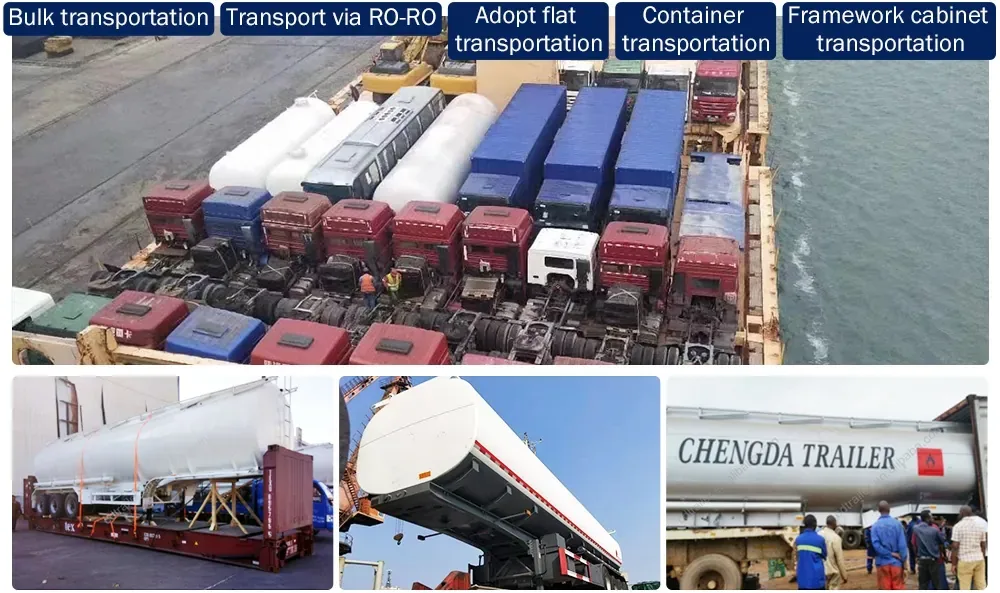

Ro-Ro Vessel The trailer is towed on and off under its own wheels, with no dismantling at all — the fastest option when your port has a Ro-Ro berth. | Break-Bulk Shipping Suited to complete units shipped without dismantling, and to ports that have no Ro-Ro facility available. |
Container Transport The most economical option for smaller units; the trailer is partly dismantled so that it fits into the container. | Waxing & Export Documents Tank, chassis and fittings are waxed before loading to prevent seawater corrosion, and full export documentation is prepared for your market. |
Send your demand, free design drawing & best quote for you!

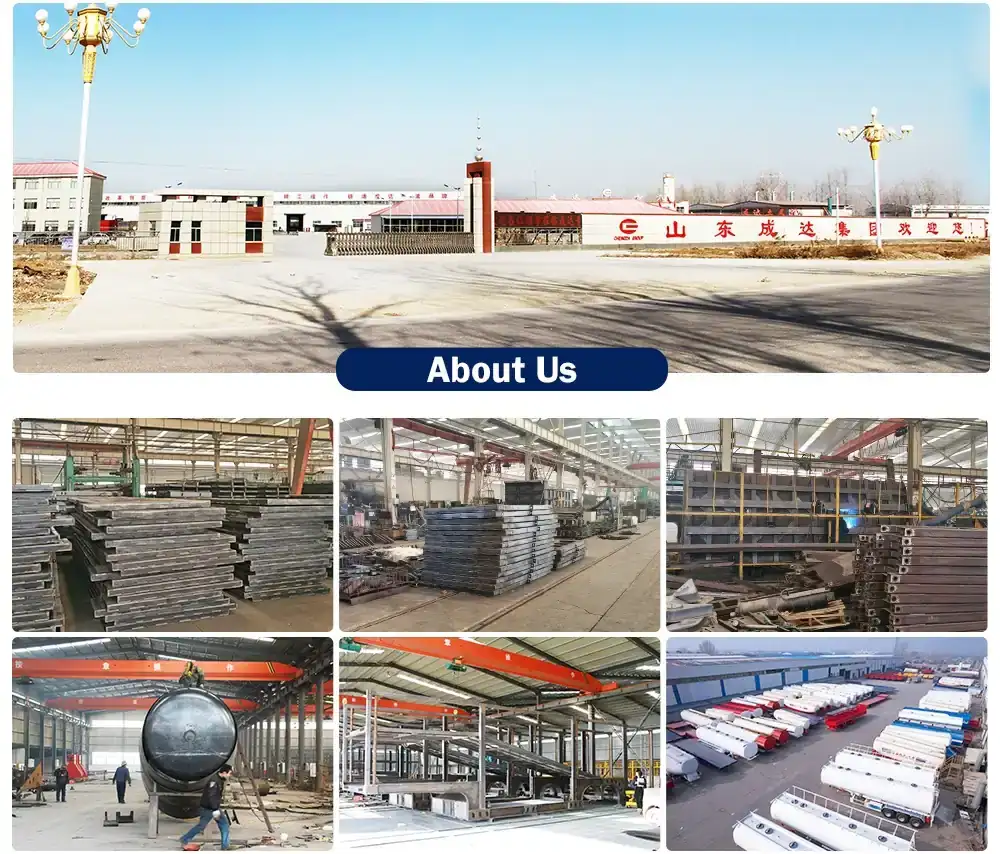

Semi-Trailer Manufacturer & Heavy Truck Exporter Chengda builds its own semi-trailers — fuel tank, flatbed, low-bed, skeleton and side-wall units — in its own workshop, where tank bodies are formed, welded and then pressure and seal tested before dispatch. Alongside our own trailer production we are a professional dealer and exporter of heavy trucks, supplying Shacman, HOWO, Dongfeng and Foton through official OEM channels. That gives you one accountable partner for both tractor and trailer, with complete export documentation, configurations built to your order and genuine spare-parts support after delivery. |
