【Features of oil tanker semi-trailers】
Premium High-Tensile Structural Durability : Built with heavy-duty Q345B carbon steel and processed with automated dual-surface submerged arc welding, ensuring the tank resists extreme internal pressure and rugged oilfield terrain impacts.
Advanced Safety Bottom Loading Architecture : Equipped with international standard pneumatic bottom API valves and overfill prevention probes, drastically reducing loading vapor loss and eliminating static ignition hazards.
Heavy-Duty 3-Axle Running Gear : Features world-renowned 13T/16T FUWA or BPW axles paired with reinforced mechanical suspension, delivering uncompromised stability and supreme load bearing under maximum fluid payload.
Optional Thermal Insulation & H
eating Options : For heavy, high-viscosity crude oil, we offer customized rock wool insulation layers and steam/burner heating pipes to maintain optimal fluid temperatures and fluid flow during transit.
Factory-Direct Value & High Fleet ROI : Combining our robust, low-maintenance trailer specifications with unbeatable factory-direct pricing minimizes your upfront capital risk and secures a rapid return on investment.
Ready to enhance your transport efficiency?
Get a Free Quote Now
【Reference parameters for oil tanker semi-trailers】
| Parameter | English Technical Specifications |
|---|
| Product Name | 3 Axle 45000 Litres Crude Oil Tanker Trailer |
| Tank Capacity | 45,000 Liters / 45 m³ (1-5 Compartments Optional) |
| Shell Material | 5mm High-Tensile Q345B Steel; Dish Ends: 6mm |
| Axle Specification | 3 Axles * 13T / 16T Capacity, FUWA / BPW Brand |
| Bottom Valve | 3 or 4-inch Pneumatic Aluminum Emergency Valve |
| Discharge System | API Standard couplers, anti-overfill sensor socket |
| Suspension | Heavy-duty 3-axle mechanical leaf spring suspension |
| Landing Gear | JOST D200T heavy duty two-speed manual type |
| Braking Safety | Dual-line pneumatic system with WABCO ABS |
| Tire Configuration | 12R22.5 Tubeless Tires, Triangular/Linglong (12+1 pcs) |

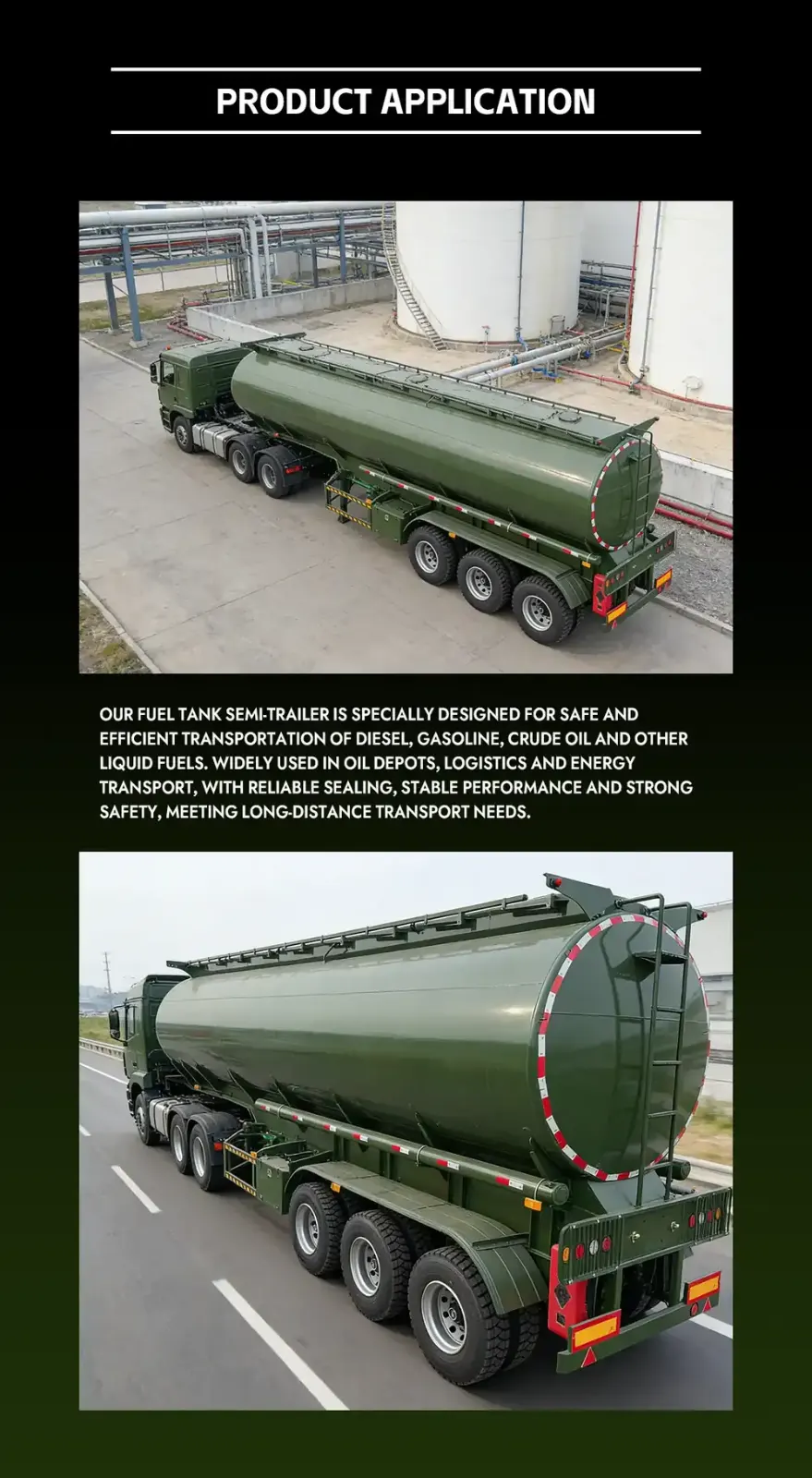

【Application scenarios of oil tanker semi-trailers】
1. Oilfield to Coastal Refinery Haulage : The ultimate heavy-duty tanker semi trailer designed for transporting unrefined crude oil straight from remote wellheads and production fields to industrial processing terminals, enduring rugged dirt roads.
2. Large-Scale Strategic Reserves Inter-Terminal Logistics : Perfectly optimized for multi-national petroleum bulk logistics, allowing massive volumes of crude products to be distributed across national commercial hubs with complete safety compliance.
3. High-Viscosity Liquid Fuel Trans-Border Forwarding: Utilizing its optional steam heating and insulated shell parameters, this trailer is highly efficient for shipping bitumen, heavy fuel oils, and raw oil materials across vast regional boundaries without product solidification.
【Packaging and Transportation】
To protect the exterior paint and critical drivetrain electronic components of your tanker semi-trailers, we offer professional packaging and shipping solutions. Each vehicle undergoes a comprehensive technical diagnostic inspection and multi-layer anti-corrosion wax polishing to protect the steel body from moisture during sea transport. We utilize reliable roll-on/roll-off (RORO) vessels or specialized bulk carriers to ensure the vehicles arrive at their international destinations undamaged.
